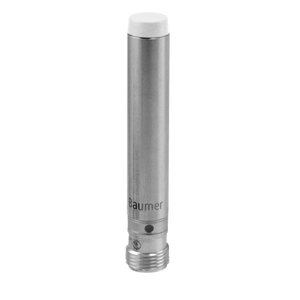

The Baumer IFBR 11P13T1/L-9 11014612 is a non-flush, hygienic design proximity sensor with a nominal sensing distance of 6 mm and a hysteresis range of 2 to 15% of Sr. It features a red LED output indicator and is equipped with a PNP make function (NO) output circuit. The sensor operates on a voltage supply range of 6 to 30 VDC, with a maximum current consumption of 10 mA and an output current of 200 mA, which reduces to less than 100 mA at cleaning temperatures. It includes short circuit and reverse polarity protection. The sensor's cylindrical smooth design is made from LCP for the sensing face and stainless steel 1.4404 (V4A) for the housing, measuring 11 mm in diameter and 54 mm in length. It connects via a 2 m PVC cable and operates within a temperature range of -40 to +80 °C, withstanding cleaning temperatures of 80 to +100 °C for up to 30 minutes per day. The sensor is highly durable, rated IP 68/69K & proTect+ for protection, and meets multiple regulatory approvals including Ecolab, EHEDG, and various EC and FDA regulations.
- Mounting type:
- Non-flush
- Special type:
- Hygienic design
- Nominal sensing distance Sn:
- 6 mm
- Hysteresis:
- 2 15 % of Sr
- Output indicator:
- LED red
- Approvals/certificates:
- Ecolab Adapted from EHEDG REGULATION (EC) 1935/2004 REGULATION (EC) 2023/2006 REGULATION (EU) 1282/2011 FDA 21 CFR § 175.300 FDA 21 CFR § 177.2600 FCN 742
- Switching frequency:
- 1 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- PNP make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Output current (at cleaning temperature):
- < 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical smooth
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel 1.4404 (V4A)
- Dimension:
- 11 mm
- Housing length:
- 54 mm
- Connection types:
- Cable PVC, 2 m
- Operating temperature:
- -40 +80 °C
- Cleaning temperature:
- 80 +100 °C (30 min/day)
- Protection class:
- IP 68/69K & proTect+
