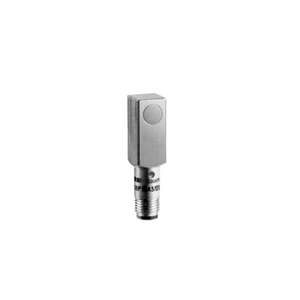

The Baumer IFFM 06N15A3/O1L 10146220 is a flush-mounted inductive sensor with a nominal sensing distance of 1 mm and adjustable hysteresis between 2% and 20% of the sensing range. It features a red LED output indicator on the backside and operates at a switching frequency of 5 kHz. The sensor is powered by a voltage supply range of 6 to 30 VDC and has a maximum current consumption of 12 mA with no load. It includes an NPN make function (NO) output circuit, with a voltage drop of less than 2 VDC and an output current capacity of 200 mA. Enhanced with short circuit and reverse polarity protection, the sensor is designed in a rectangular shape with a 6 mm dimension and 20 mm housing length. The sensing face is made of LCP, while the housing is crafted from brass nickel-plated material. It connects via a 2-meter cable and operates within a temperature range of -25 to +75 °C. The sensor is IP 67 rated, ensuring protection against dust and water ingress.
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 1 mm
- Hysteresis:
- 2 20 % of Sr
- Output indicator:
- LED red (backside)
- Switching frequency:
- 5 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- NPN make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Material (sensing face):
- LCP
- Housing material:
- Brass nickel plated
- Dimension:
- 6 mm
- Housing length:
- 20 mm
- Connection types:
- Cable, L=2 m
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
