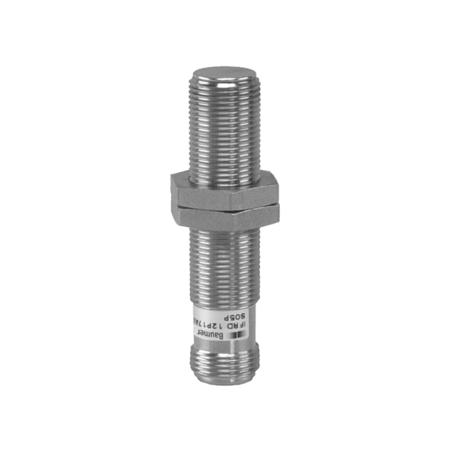

The Baumer IFRD 12P37A3/S14L 10149569 is a quasi-flush, cylindrical threaded proximity sensor with a full metal housing designed for durability and reliability in harsh environments. It features a nominal sensing distance of 4 mm and a hysteresis range of 2 to 20% of Sr. Equipped with a PNP break function (NC) output circuit, the sensor supports a switching frequency of 100 Hz and can handle a voltage supply range of 10 to 30 VDC. The maximum current consumption is 14 mA with an output current of 200 mA. It includes a 3-port LED red output indicator, short circuit and reverse polarity protection, and can operate within a temperature range of -25 to +75 °C. The sensor's sensing face and housing are made from stainless steel 1.4404 (V4A), ensuring robustness with an operating pressure of up to 20 bar. It has a voltage drop of less than 2 VDC, a housing length of 50 mm, and a diameter of 12 mm. Connectivity is facilitated via an M12 connector, and it boasts an IP 68/67 rating for the sensing face and sensor body, respectively, providing high levels of protection against dust and water ingress.
- Mounting type:
- Quasi-flush
- Special type:
- Full metal housing (DuroProx)
- Nominal sensing distance Sn:
- 4 mm
- Hysteresis:
- 2 20 % of Sr
- Output indicator:
- 3 port LED red
- Switching frequency:
- 100 Hz
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 14 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- Stainless steel 1.4404 (V4A)
- Housing material:
- Stainless steel 1.4404 (V4A)
- Operating pressure static:
- < 20 bar
- Dimension:
- 12 mm
- Housing length:
- 50 mm
- Connection types:
- Connector M12
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 68/67 (sensing face/sensor)
- Datasheet:
- View
