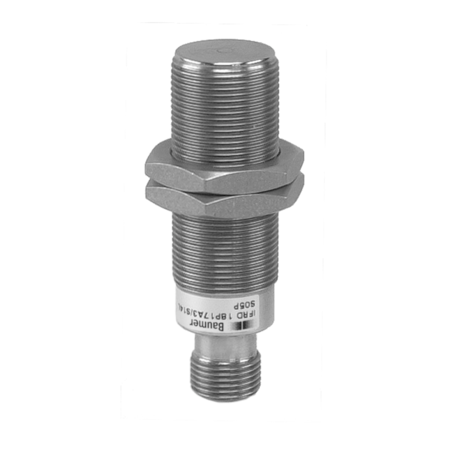

The Baumer IFRD 18N37T3/S14 10150610 is a quasi-flush, cylindrical threaded proximity sensor with a full metal housing designed for high-temperature environments. It features a nominal sensing distance of 6 mm and a hysteresis of 2 to 20% of Sr. The sensor operates at a switching frequency of 100 Hz and requires a voltage supply range of 10 to 30 VDC, with a maximum current consumption of 14 mA at no load. It includes an NPN break function (NC) output circuit, supports an output current of 100 mA, and has a voltage drop of less than 2 VDC. Equipped with short circuit and reverse polarity protection, it is built from durable stainless steel 1.4404 (V4A) for both the sensing face and housing, ensuring robustness in challenging conditions. The sensor can withstand operating pressures up to 20 bar and temperatures ranging from -25 to +100 °C. It features an M12 connector for easy installation and is rated IP 69K for high-level protection against dust and water ingress. Ideal for use in a variety of industrial applications requiring precise and reliable proximity detection.
- Mounting type:
- Quasi-flush
- Special type:
- Full metal housing (DuroProx) High temperature
- Nominal sensing distance Sn:
- 6 mm
- Hysteresis:
- 2 20 % of Sr
- Switching frequency:
- 100 Hz
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 14 mA
- Output circuit:
- NPN break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- Stainless steel 1.4404 (V4A)
- Housing material:
- Stainless steel 1.4404 (V4A)
- Operating pressure static:
- < 20 bar
- Dimension:
- 18 mm
- Housing length:
- 60 mm
- Connection types:
- Connector M12
- Operating temperature:
- -25 +100 °C
- Protection class:
- IP 69K
