Description

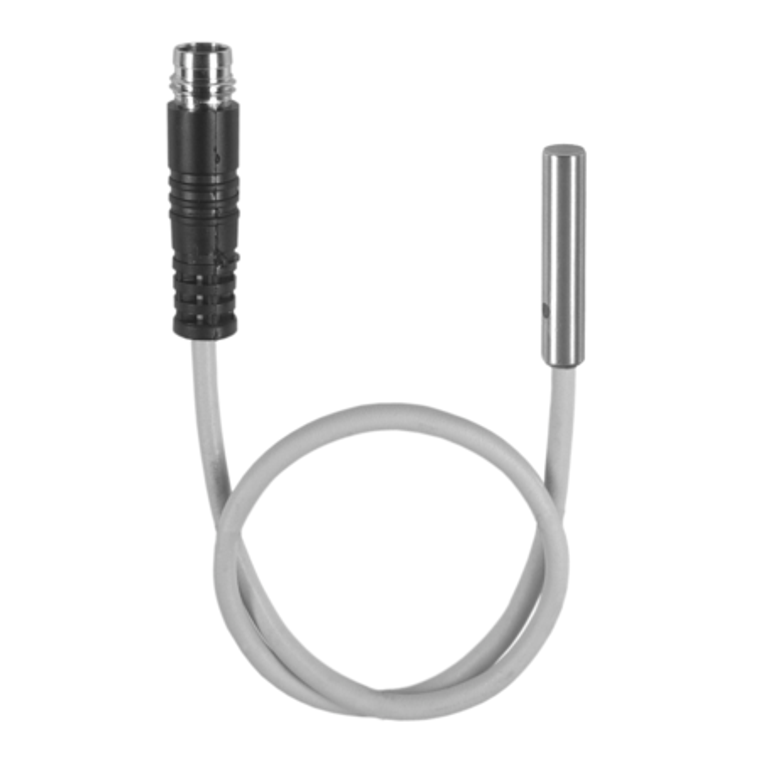

The Baumer IFRM 04N15A1/KS35PL 10160285 is a flush-mounted inductive sensor with a nominal sensing distance of 1 mm and adjustable hysteresis between 2% and 20% of Sr. It features a red LED output indicator and operates at a switching frequency of 5 kHz. The sensor is powered by a voltage supply range of 6 to 30 VDC and has a maximum current consumption of 12 mA when no load is present. It includes an NPN make function (NO) output circuit with a voltage drop of less than 2 VDC and an output current capacity of 200 mA. Enhanced with both short circuit and reverse polarity protection, this sensor is designed with a cylindrical smooth stainless steel housing and an LCP sensing face. It measures 4 mm in diameter and 25 mm in housing length, connecting via a flylead connector M8. Suitable for operating temperatures ranging from -25 to +75 °C, it is IP 67 rated for protection against dust and immersion.
