Description

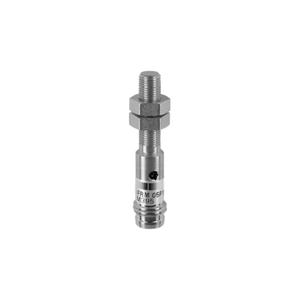

The Baumer IFRM 05P35A3/KS35PL 10160291 is a flush-mounted inductive sensor with a nominal sensing distance of 1 mm and adjustable hysteresis between 2 to 20% of Sr. It features a red LED output indicator and operates at a switching frequency of 5 kHz. The sensor is powered by a voltage supply range of 6 to 30 VDC and has a maximum current consumption of 12 mA when unloaded. It includes a PNP break function (NC) output circuit, with a voltage drop of less than 2 VDC and an output current capacity of 200 mA. Enhanced with both short circuit and reverse polarity protection, this sensor is designed with a cylindrical threaded housing made of stainless steel and an LCP sensing face. It measures 5 mm in diameter and 20 mm in housing length, and connects via a flylead connector M8. The sensor can be tightened with a maximum torque of 2 Nm (front: 1.4 Nm) and operates within a temperature range of -25 to +75 °C. It is rated IP 67 for protection against dust and immersion. For more detailed information, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_IFRM-05P35A3-KS35PL_EN_20221109_DS.pdf?mediaPK=9055925370910).
