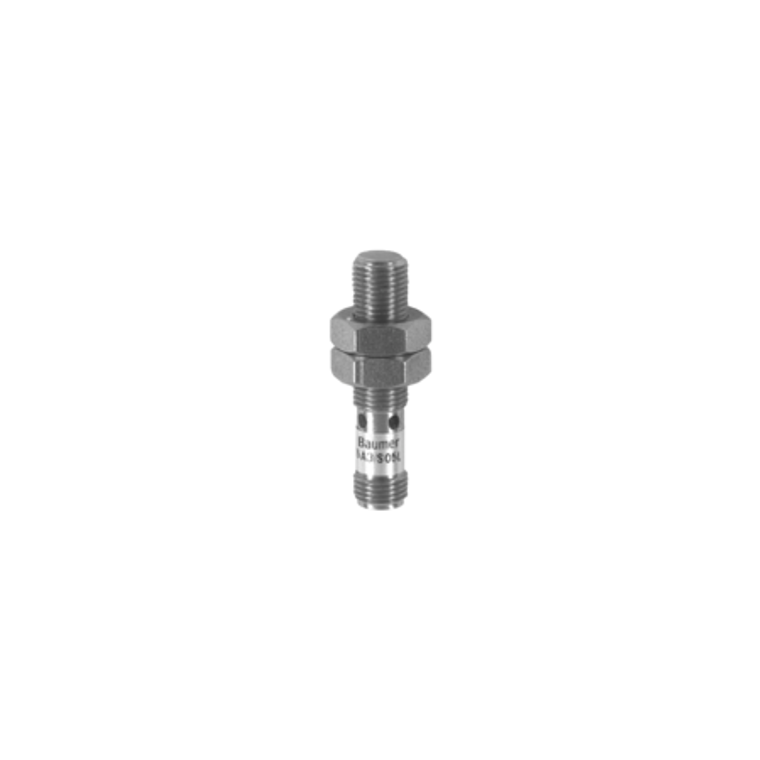

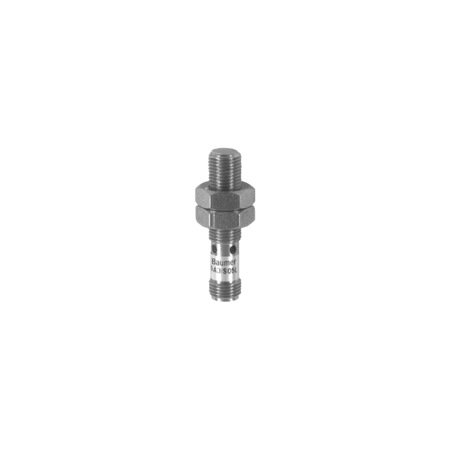

Baumer IFRM 05P35A3/S05L 10144453
Baumer
$190.90
The Baumer IFRM 05P35A3/S05L 10144453 is a flush-mounted inductive sensor with a nominal sensing distance of 1 mm and a hysteresis range of 2 to 20% of Sr. It features a dual red LED output indicator and operates at a switching frequency of 5 kHz. The sensor is powered by a voltage supply range of 6 to 30 VDC and has a maximum no-load current consumption of 12 mA. It includes a PNP break function (NC) output circuit with a voltage drop of less than 2 VDC and an output current capacity of 200 mA. The sensor is equipped with short circuit and reverse polarity protection. Its cylindrical threaded design is made from stainless steel with an LCP sensing face, and it measures 5 mm in diameter and 24 mm in housing length. The connection is facilitated via an M5 connector, and it can be tightened with a maximum torque of 2 Nm (Front: 1.4 Nm). The operating temperature range is from -25 to +75 °C, and it is rated IP 67 for protection against dust and water ingress.
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 1 mm
- Hysteresis:
- 2 20 % of Sr
- Output indicator:
- 2 port LED red
- Switching frequency:
- 5 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel
- Dimension:
- 5 mm
- Housing length:
- 24 mm
- Connection types:
- Connector M5
- Tightening torque max.:
- 2 Nm (Front: 1,4 Nm)
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
