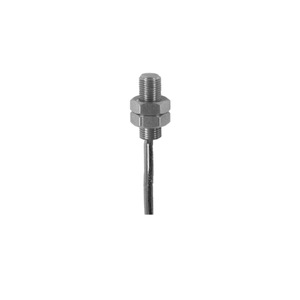

The Baumer IFRM 05P35A5/Q 10144461 is a flush-mounted inductive sensor with a nominal sensing distance of 1 mm and a hysteresis range of 2 to 20% of Sr. It features a high switching frequency of 5 kHz and operates within a voltage supply range of 6 to 30 VDC. The sensor consumes a maximum of 12 mA with no load and has a PNP break function (NC) output circuit. It supports an output current of 200 mA and includes safety features such as short circuit and reverse polarity protection. The sensor is designed with a cylindrical threaded housing made of stainless steel and an LCP sensing face. It measures 5 mm in diameter and 15 mm in housing length, with a connection via 0.5 m wires. The maximum tightening torque is 2 Nm, with 1.4 Nm at the front. It operates within a temperature range of -25 to +75 °C and is rated IP 67 for protection against dust and water ingress. For more detailed information, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_IFRM-05P35A5-Q_EN_20221109_DS.pdf?mediaPK=9055919865886).
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 1 mm
- Hysteresis:
- 2 20 % of Sr
- Switching frequency:
- 5 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel
- Dimension:
- 5 mm
- Housing length:
- 15 mm
- Connection types:
- Wires, 0,5 m
- Tightening torque max.:
- 2 Nm (Front: 1,4 Nm)
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
