Baumer IFRM 12P17X2/L 11096376
Baumer

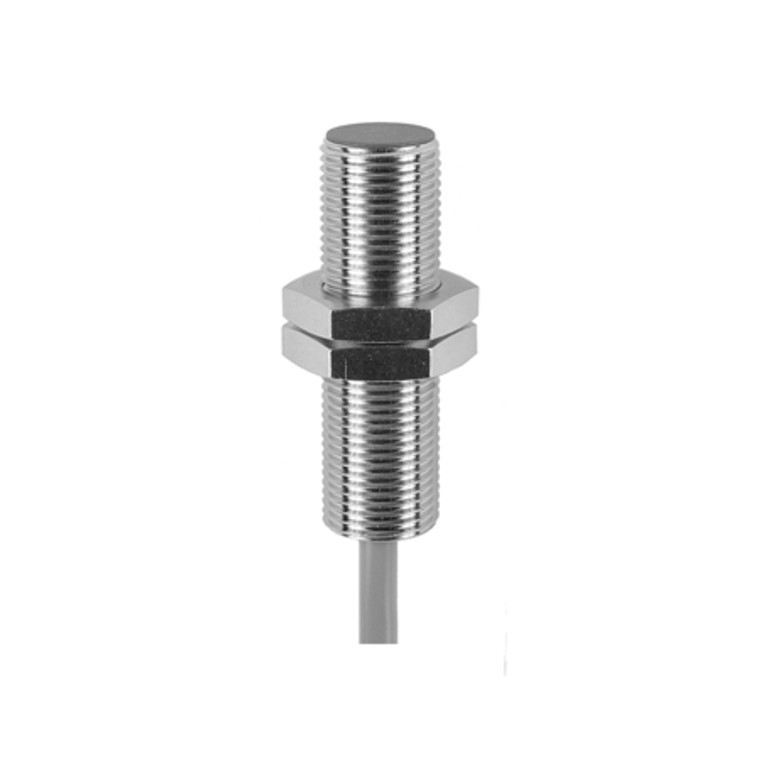

The Baumer IFRM 12P17X2/L 11096376 is a flush-mounted inductive sensor with a nominal sensing distance of 4 mm and adjustable hysteresis between 3% and 20% of Sr. It features a red LED output indicator and is equipped with a PNP make function (NO) output circuit. The sensor operates within a voltage supply range of 10 to 30 VDC and has a maximum current consumption of 10 mA with no load. It supports an output current of up to 200 mA and includes short circuit and reverse polarity protection. The cylindrical threaded design is made from brass nickel-plated housing and PBT sensing face, measuring 12 mm in diameter and 40 mm in housing length. It connects via a 2-meter cable and is designed to withstand a tightening torque of up to 15 Nm. Certified with ATEX 3D for use in hazardous environments, it has a switching frequency of 2 kHz and a voltage drop of less than 2 VDC. The sensor is protected up to IP 67 standards, ensuring durability and reliability in various industrial applications.
- Scanning range Sd:
- 30 200 mm
- Scanning range close limit Sdc:
- 30 200 mm
- Scanning range far limit Sde:
- 30 200 mm
- Repeat accuracy:
- 0.5 mm
- Resolution:
- < 0.3 mm
- Response time ton:
- < 35 ms
- Release time toff:
- < 35 ms
- Temperature drift:
- > 50 mm < 2 % of distance to target Sde
- Sonic frequency:
- 380 kHz
- Adjustment:
- Teach-in
- Alignment aid:
- Target indication flashing
- Light indicator:
- Yellow LED / red LED
- Voltage supply range +Vs:
- 15 30 VDC
- Current consumption max. (no load):
- 35 mA
- Output circuit:
- Voltage output
- Output signal:
- 0 ... 10 V / 10 ... 0 V
- Output current:
- 15 mA
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Housing material:
- PA 12
- Width / diameter:
- 8.6 mm
- Height / length:
- 55 mm
- Depth:
- 24.5 mm
- Connection types:
- Cable PUR 4 x 0,08, 2 m
- Operating temperature:
- 0 +60 °C
- Protection class:
- IP 67
