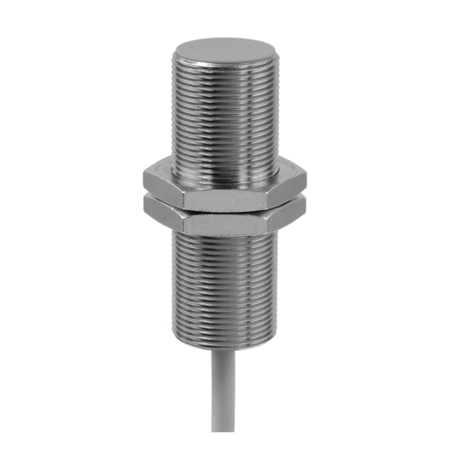

The Baumer IFRM 18N17A3/L 11078671 is a quasi-flush, cylindrical threaded proximity sensor with a nominal sensing distance of 8 mm and a hysteresis range of 3 to 20% of Sr. It features a red LED output indicator and operates at a switching frequency of 500 Hz. The sensor is designed for a voltage supply range of 6 to 36 VDC and has a maximum no-load current consumption of 10 mA. It includes an NPN make function (NO) output circuit with a maximum voltage drop of less than 2 VDC and an output current capacity of 200 mA. Enhanced with both short circuit and reverse polarity protection, it is built from brass nickel-plated housing and a PBT sensing face. The sensor has a dimension of 18 mm in diameter and a housing length of 50 mm, and it connects via a 2-meter cable. It can be tightened with a maximum torque of 40 Nm and operates within a temperature range of -25 to +75 °C. The sensor is IP 67 rated, indicating a high level of protection against dust and water ingress.
- Mounting type:
- Quasi-flush
- Nominal sensing distance Sn:
- 8 mm
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- LED red
- Switching frequency:
- 500 Hz
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- NPN make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 18 mm
- Housing length:
- 50 mm
- Connection types:
- Cable, L=2 m
- Tightening torque max.:
- 40 Nm
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
