Baumer IFRM 18N17A4/L 11111666
Baumer
$130.10

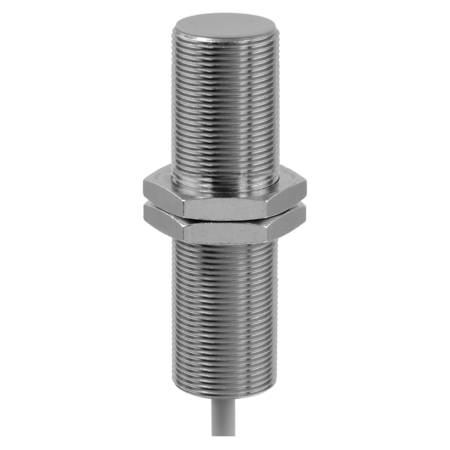

Baumer IFRM 18N17A4/L 11111666 is a quasi-flush, cylindrical threaded proximity sensor with an 8 mm nominal sensing distance and adjustable hysteresis of 3-20% of Sr. It features a red LED output indicator, a high switching frequency of 500 Hz, and operates on a voltage supply range of 6-36 VDC. The sensor consumes a maximum of 10 mA with no load and supports an NPN make function (NO) output circuit with a voltage drop of less than 2 VDC and an output current of 200 mA. It includes short circuit and reverse polarity protection. The sensor is constructed with a PBT sensing face and a brass nickel-plated housing, measuring 18 mm in diameter and 65 mm in length. It connects via a 2 m cable and requires a maximum tightening torque of 40 Nm. Suitable for operating temperatures from -25 to +75 °C, it is IP 67 rated for protection against dust and immersion.
- Mounting type:
- Quasi-flush
- Nominal sensing distance Sn:
- 8 mm
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- LED red
- Switching frequency:
- 500 Hz
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- NPN make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 18 mm
- Housing length:
- 65 mm
- Connection types:
- Cable, L=2 m
- Tightening torque max.:
- 40 Nm
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
