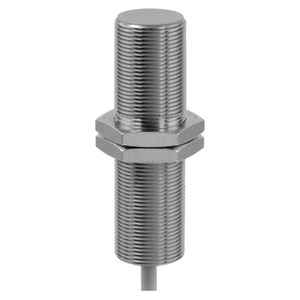

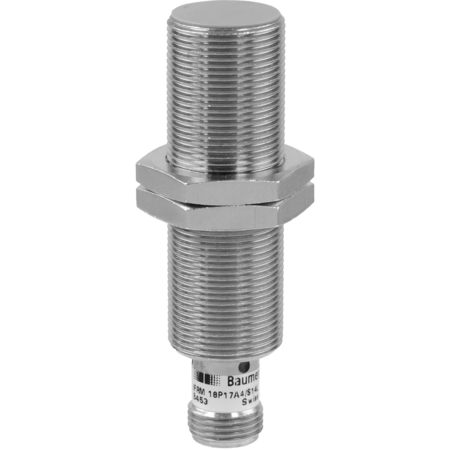

Baumer IFRM 18N17A4/S14L 11111669
Baumer
$109.10
The Baumer IFRM 18N17A4/S14L 11111669 is a quasi-flush, cylindrical threaded inductive sensor with a nominal sensing distance of 8 mm and a hysteresis range of 3 to 20% of Sr. It features a 3-port LED red output indicator and operates at a switching frequency of 500 Hz. The sensor is designed for a voltage supply range of 6 to 36 VDC and has a maximum current consumption of 10 mA when no load is present. It includes an NPN make function (NO) output circuit with a voltage drop of less than 2 VDC and an output current capacity of 200 mA. Enhanced with both short circuit and reverse polarity protection, it is built from brass nickel-plated housing and PBT sensing face material. The sensor measures 18 mm in diameter and 75 mm in housing length, and it connects via an M12 connector. It can be tightened with a maximum torque of 40 Nm and operates within a temperature range of -25 to +75 °C. The sensor is IP 67 rated, ensuring protection against dust and immersion in water. For more detailed information, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_IFRM-18N17A4-S14L_EN_20221109_DS.pdf?mediaPK=9056026591262).
- Mounting type:
- Quasi-flush
- Nominal sensing distance Sn:
- 8 mm
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- 3 port LED red
- Switching frequency:
- 500 Hz
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- NPN make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 18 mm
- Housing length:
- 75 mm
- Connection types:
- Connector M12
- Tightening torque max.:
- 40 Nm
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
