Baumer IFRM 18N17A5/S14L 11078675
Baumer

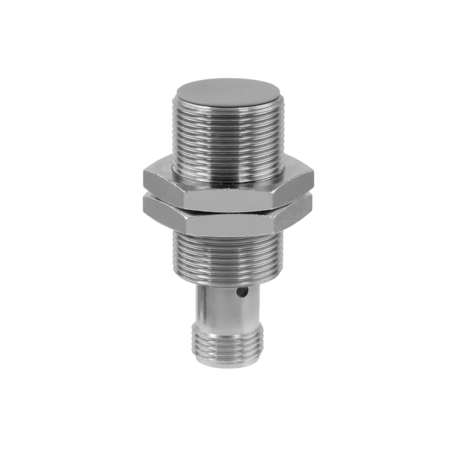

The Baumer IFRM 18N17A5/S14L 11078675 is a quasi-flush, cylindrical threaded inductive sensor with a nominal sensing distance of 8 mm and a hysteresis range of 3 to 20% of Sr. It features a red LED output indicator and operates at a switching frequency of 500 Hz. The sensor is designed for a voltage supply range of 6 to 36 VDC and has a maximum no-load current consumption of 10 mA. It includes an NPN make function (NO) output circuit with a voltage drop of less than 2 VDC and an output current capacity of 200 mA. Enhanced with short circuit and reverse polarity protection, this sensor is built from brass nickel-plated housing and a PBT sensing face. It measures 18 mm in diameter and 45 mm in housing length, and connects via an M12 connector. The maximum tightening torque is 40 Nm. Suitable for operating temperatures ranging from -25 to +75 °C, it is IP 67 rated for protection against dust and immersion. For more details, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_IFRM-18N17A5-S14L_EN_20221109_DS.pdf?mediaPK=9056022462494).
- Mounting type:
- Quasi-flush
- Nominal sensing distance Sn:
- 8 mm
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- LED red
- Switching frequency:
- 500 Hz
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- NPN make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 18 mm
- Housing length:
- 45 mm
- Connection types:
- Connector M12
- Tightening torque max.:
- 40 Nm
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
