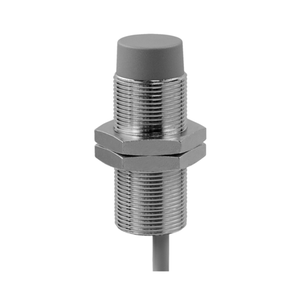

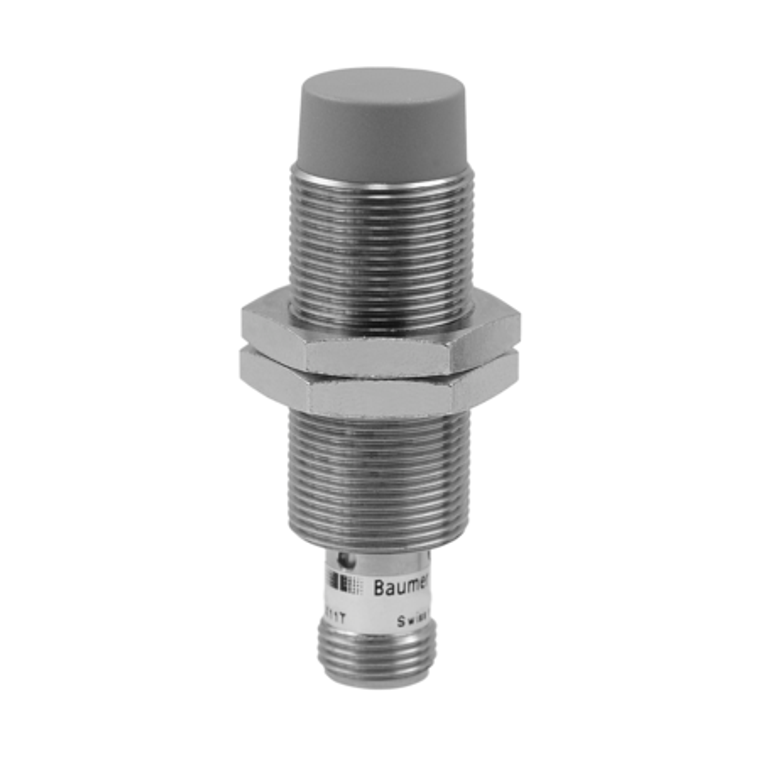

Baumer IFRM 18N33T1/S14L 11016656 is a non-flush, cylindrical threaded inductive sensor designed for outdoor use, featuring a nominal sensing distance of 12 mm and a hysteresis of 2 to 15% of Sr. It includes a red LED output indicator and operates at a switching frequency of 500 Hz. The sensor supports a voltage supply range of 6 to 30 VDC and has a maximum no-load current consumption of 10 mA. It utilizes an NPN break function (NC) output circuit with a voltage drop of less than 2 VDC and an output current of 200 mA. Equipped with short circuit and reverse polarity protection, the sensor is made from brass nickel-plated housing and PBT sensing face. It has a dimension of 18 mm in diameter and a housing length of 60 mm, with an M12 connector type. The maximum tightening torque is 40 Nm (Front: 28 Nm), and it operates within a temperature range of -40 to +80 °C. The sensor is IP 67 rated for protection against dust and immersion.
- Mounting type:
- Non-flush
- Special type:
- Outdoor design
- Nominal sensing distance Sn:
- 12 mm
- Hysteresis:
- 2 15 % of Sr
- Output indicator:
- LED red
- Switching frequency:
- 500 Hz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- NPN break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 18 mm
- Housing length:
- 60 mm
- Connection types:
- Connector M12
- Tightening torque max.:
- 40 Nm (Front: 28 Nm)
- Operating temperature:
- -40 +80 °C
- Protection class:
- IP 67
