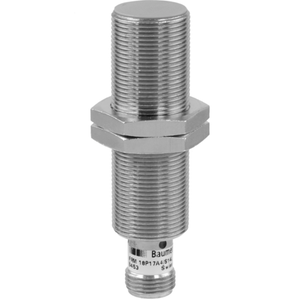

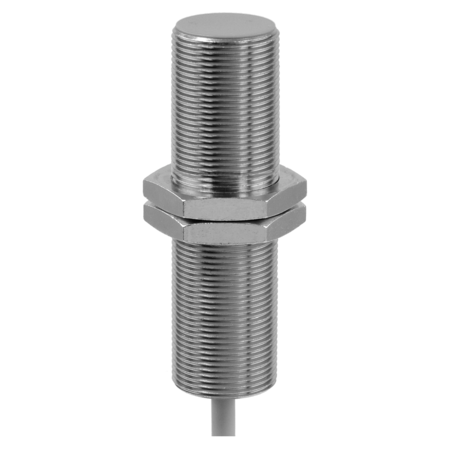

The Baumer IFRM 18P37A4/L 11111679 is a quasi-flush, cylindrical threaded proximity sensor with a nominal sensing distance of 8 mm and adjustable hysteresis between 3% and 20% of Sr. It features a red LED output indicator and operates at a switching frequency of 500 Hz. The sensor is designed for a voltage supply range of 6 to 36 VDC and has a maximum current consumption of 10 mA when unloaded. It includes a PNP break function (NC) output circuit, with a voltage drop of less than 2 VDC and an output current capacity of 200 mA. Enhanced with both short circuit and reverse polarity protection, it is built from brass nickel-plated housing and a PBT sensing face. The sensor measures 18 mm in diameter and 65 mm in housing length, and it connects via a 2-meter cable. It can be securely fastened with a maximum tightening torque of 40 Nm and operates within a temperature range of -25 to +75 °C. This durable sensor is rated IP 67 for protection against dust and immersion, making it suitable for a wide range of industrial applications. For more detailed information, refer to the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_IFRM-18P37A4-L_EN_20221109_DS.pdf?mediaPK=9056029212702).
- Mounting type:
- Quasi-flush
- Nominal sensing distance Sn:
- 8 mm
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- LED red
- Switching frequency:
- 500 Hz
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 18 mm
- Housing length:
- 65 mm
- Connection types:
- Cable, L=2 m
- Tightening torque max.:
- 40 Nm
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
