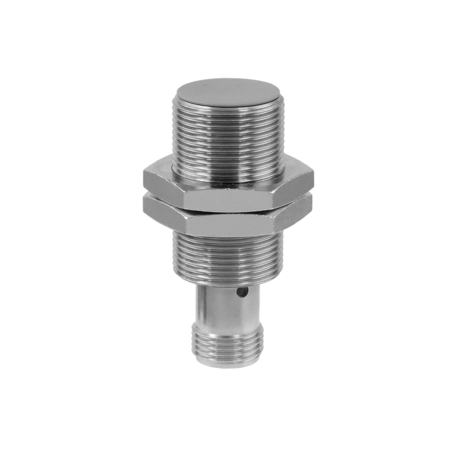

Baumer IFRM 18P37A5/S14L 11078674 is a quasi-flush, cylindrical threaded proximity sensor with an 8 mm nominal sensing distance and adjustable hysteresis of 3-20% of Sr. It features a red LED output indicator and operates at a switching frequency of 500 Hz. The sensor supports a voltage supply range of 6-36 VDC and has a maximum no-load current consumption of 10 mA. It includes a PNP break function (NC) output circuit with a voltage drop of less than 2 VDC and an output current capacity of 200 mA. Equipped with short circuit and reverse polarity protection, the sensor is constructed from brass nickel-plated housing and PBT sensing face. It has a dimension of 18 mm in diameter and a housing length of 45 mm. The sensor connects via an M12 connector and requires a maximum tightening torque of 40 Nm. It operates within a temperature range of -25 to +75 °C and is rated IP 67 for protection against dust and water ingress.
- Mounting type:
- Quasi-flush
- Nominal sensing distance Sn:
- 8 mm
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- LED red
- Switching frequency:
- 500 Hz
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 18 mm
- Housing length:
- 45 mm
- Connection types:
- Connector M12
- Tightening torque max.:
- 40 Nm
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
