Baumer IFRR 12N33T1/L-9 11016094
Baumer
$207.70

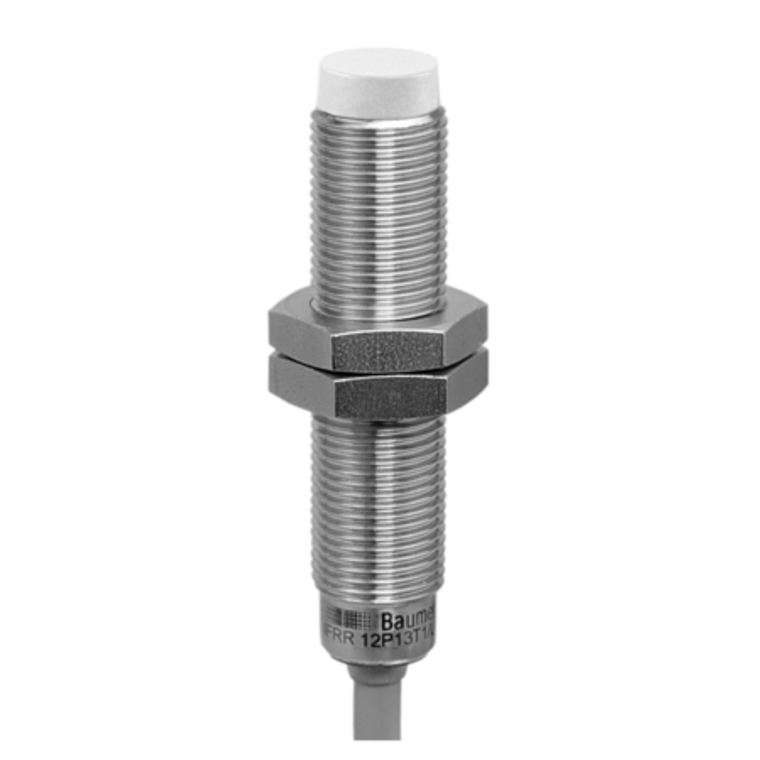

The Baumer IFRR 12N33T1/L-9 11016094 is a non-flush, cylindrical threaded inductive sensor designed for washdown applications, featuring a nominal sensing distance of 6 mm and a hysteresis of 2 to 15% of Sr. It includes a red LED output indicator and operates with a switching frequency of 1 kHz. The sensor supports a voltage supply range of 6 to 30 VDC and has a maximum no-load current consumption of 10 mA. It utilizes an NPN break function (NC) output circuit with a maximum output current of 200 mA, which reduces to less than 100 mA at cleaning temperatures. The sensor is equipped with short circuit and reverse polarity protection. Constructed with an LCP sensing face and a stainless steel 1.4404 (V4A) housing, it measures 12 mm in diameter and 55 mm in length. The sensor is connected via a 2-meter PVC cable and can withstand a tightening torque of up to 20 Nm. It operates within a temperature range of -40 to +80 °C and can handle cleaning temperatures between 80 and 100 °C for up to 30 minutes per day. The sensor is rated IP 68/69K & proTect+ for high-level protection against dust and water ingress and is certified by Ecolab. It also meets stringent vibration and shock resistance standards as per EN 61373: 2010 and EN 60068-2.
- Mounting type:
- Non-flush
- Special type:
- Washdown design
- Nominal sensing distance Sn:
- 6 mm
- Hysteresis:
- 2 15 % of Sr
- Output indicator:
- LED red
- Approvals/certificates:
- Ecolab
- Switching frequency:
- 1 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- NPN break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Output current (at cleaning temperature):
- < 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel 1.4404 (V4A)
- Dimension:
- 12 mm
- Housing length:
- 55 mm
- Connection types:
- Cable PVC, 2 m
- Tightening torque max.:
- 20 Nm (Front: 14 Nm)
- Operating temperature:
- -40 +80 °C
- Cleaning temperature:
- 80 +100 °C (30 min/day)
- Protection class:
- IP 68/69K & proTect+
- Vibration resistance:
- EN 61373: 2010 (category 3), 5h per axis (14.4 gRMS, 10-500 Hz, EN 60068-2-64)
- Shock resistance:
- EN 61373: 2010 (category 3), 10 bumps per axis (100 g, 6 ms, EN 60068-2-27)
