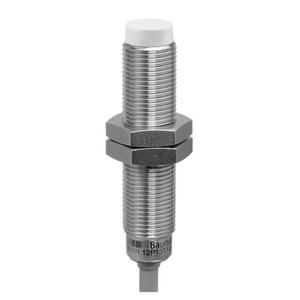

The Baumer IFRR 12P13T1/S14L-9 11016087 is a non-flush, cylindrical threaded proximity sensor designed for outdoor and washdown environments. It features a nominal sensing distance of 6 mm with a hysteresis range of 2 to 15% of Sr. Equipped with a red LED output indicator, it operates within a voltage supply range of 6 to 30 VDC and has a maximum current consumption of 10 mA when no load is present. The sensor supports a PNP make function (NO) output circuit, with a maximum output current of 200 mA and a reduced output current of less than 100 mA at cleaning temperatures. It includes short circuit and reverse polarity protection. The sensing face is made of LCP, while the housing is constructed from durable stainless steel 1.4404 (V4A). Dimensions include a 12 mm diameter and a 60 mm housing length, with an M12 connector type. It can withstand tightening torques up to 20 Nm. The operating temperature range is from -40 to +80 °C, with a higher cleaning temperature tolerance of 80 to +100 °C for up to 30 minutes per day. The sensor is rated IP 68/69K & proTect+ for high-level protection against dust and water ingress, and it meets stringent vibration and shock resistance standards according to EN 61373 and EN 60068.
- Mounting type:
- Non-flush
- Special type:
- Outdoor design Washdown design
- Nominal sensing distance Sn:
- 6 mm
- Hysteresis:
- 2 15 % of Sr
- Output indicator:
- LED red
- Approvals/certificates:
- Ecolab
- Switching frequency:
- 1 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- PNP make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Output current (at cleaning temperature):
- < 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel 1.4404 (V4A)
- Dimension:
- 12 mm
- Housing length:
- 60 mm
- Connection types:
- Connector M12
- Tightening torque max.:
- 20 Nm (Front: 14 Nm)
- Operating temperature:
- -40 +80 °C
- Cleaning temperature:
- 80 +100 °C (30 min/day)
- Protection class:
- IP 68/69K & proTect+
- Vibration resistance:
- EN 61373: 2010 (category 3), 5h per axis (14.4 gRMS, 10-500 Hz, EN 60068-2-64)
- Shock resistance:
- EN 61373: 2010 (category 3), 10 bumps per axis (100 g, 6 ms, EN 60068-2-27)
