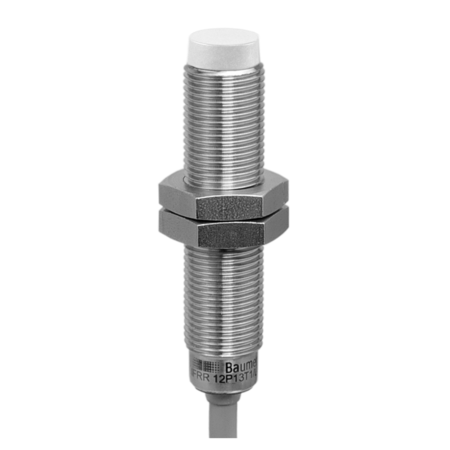

The Baumer IFRR 12P33T1/PL-9 11013654 is a non-flush, cylindrical threaded proximity sensor designed for outdoor use, featuring a nominal sensing distance of 6 mm and a hysteresis range of 2 to 15% of Sr. It includes a red LED output indicator and operates at a switching frequency of 1 kHz. The sensor supports a voltage supply range of 6 to 30 VDC and has a maximum no-load current consumption of 10 mA. It utilizes a PNP break function (NC) output circuit with a voltage drop of less than 2 VDC and an output current of 200 mA, which reduces to less than 100 mA at cleaning temperatures. Equipped with short circuit and reverse polarity protection, the sensor is made from stainless steel 1.4404 (V4A) and LCP for the sensing face, ensuring durability. It has a housing length of 55 mm and is connected via a 2-meter PUR cable. The sensor can withstand tightening torques up to 20 Nm and operates within a temperature range of -40 to +80 °C, handling cleaning temperatures between 80 to 100 °C for up to 30 minutes per day. It boasts an IP 68/69K protection class with proTect+ sealing, and meets EN 61373: 2010 standards for vibration and shock resistance, making it highly reliable in harsh environmental conditions.
- Mounting type:
- Non-flush
- Special type:
- Outdoor design
- Nominal sensing distance Sn:
- 6 mm
- Hysteresis:
- 2 15 % of Sr
- Output indicator:
- LED red
- Switching frequency:
- 1 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Output current (at cleaning temperature):
- < 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel 1.4404 (V4A)
- Dimension:
- 12 mm
- Housing length:
- 55 mm
- Connection types:
- Cable PUR 3 x 0,25, 2 m
- Tightening torque max.:
- 20 Nm (Front: 14 Nm)
- Operating temperature:
- -40 +80 °C
- Cleaning temperature:
- 80 +100 °C (30 min/day)
- Protection class:
- IP 68/69K & proTect+
- Vibration resistance:
- EN 61373: 2010 (category 3), 5h per axis (14.4 gRMS, 10-500 Hz, EN 60068-2-64)
- Shock resistance:
- EN 61373: 2010 (category 3), 10 bumps per axis (100 g, 6 ms, EN 60068-2-27)
