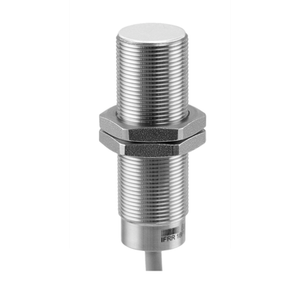

Baumer IFRR 18N37T1/S14L-9 11013638
Baumer
$207.70
The Baumer IFRR 18N37T1/S14L-9 11013638 is a robust, quasi-flush proximity sensor designed for outdoor and washdown environments. It features a nominal sensing distance of 8 mm and a hysteresis of 2 to 15% of Sr. Equipped with a red LED output indicator, it operates with a switching frequency of 500 Hz and a voltage supply range of 6 to 30 VDC. The sensor supports a maximum output current of 200 mA and reduces to less than 100 mA at cleaning temperatures. It includes short circuit and reverse polarity protection, ensuring durability and reliability. The cylindrical threaded design is made from high-grade stainless steel and LCP for the sensing face, suitable for stringent conditions with an IP 68/69K rating and proTect+ for enhanced sealing. It can withstand extreme temperatures from -40 to +80 °C and up to +100 °C for short periods during cleaning. Vibration and shock resistance are compliant with EN 61373 and EN 60068 standards, making it ideal for challenging industrial applications.
- Mounting type:
- Quasi-flush
- Special type:
- Outdoor design Washdown design
- Nominal sensing distance Sn:
- 8 mm
- Hysteresis:
- 2 15 % of Sr
- Output indicator:
- LED red
- Approvals/certificates:
- Ecolab
- Switching frequency:
- 500 Hz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- NPN break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Output current (at cleaning temperature):
- < 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel 1.4404 (V4A)
- Dimension:
- 18 mm
- Housing length:
- 60 mm
- Connection types:
- Connector M12
- Tightening torque max.:
- 55 Nm (Front: 38 Nm)
- Operating temperature:
- -40 +80 °C
- Cleaning temperature:
- 80 +100 °C (30 min/day)
- Protection class:
- IP 68/69K & proTect+
- Vibration resistance:
- EN 61373: 2010 (category 3), 5h per axis (14.4 gRMS, 10-500 Hz, EN 60068-2-64)
- Shock resistance:
- EN 61373: 2010 (category 3), 10 bumps per axis (100 g, 6 ms, EN 60068-2-27)
- Datasheet:
- View
