Baumer

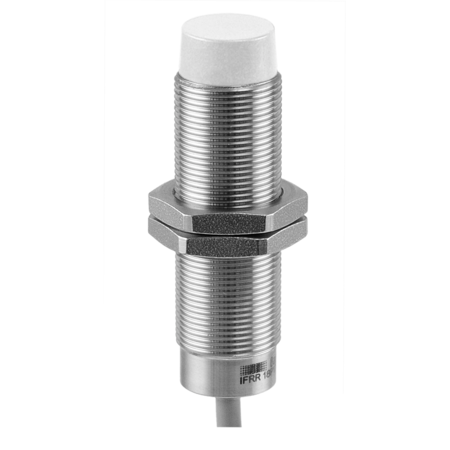

Baumer IFRR 18P13T1/L-9 11016018

(No reviews yet) Write a Review

Write a Review

Baumer

Baumer IFRR 18P13T1/L-9 11016018

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

11016018

UPC:

MPN:

11016018

Condition:

New

Mounting type:

Non-flush

Special type:

Washdown design

Nominal sensing distance Sn:

12 mm

Hysteresis:

2 … 15 % of Sr

Output indicator:

LED red

Approvals/certificates:

Ecolab

Switching frequency:

500 Hz

Voltage supply range +Vs:

6 … 30 VDC

Current consumption max. (no load):

10 mA

Output circuit:

PNP make function (NO)

Voltage drop Vd:

<2 VDC

Output current:

200 mA

Output current (at cleaning temperature):

< 100 mA

Short circuit protection:

Yes

Reverse polarity protection:

Yes

Design:

Cylindrical threaded

Material (sensing face):

LCP

Housing material:

Stainless steel 1.4404 (V4A)

Dimension:

18 mm

Housing length:

55 mm

Connection types:

Cable PVC, 2 m

Tightening torque max.:

55 Nm (Front: 38 Nm)

Operating temperature:

-40 … +80 °C

Cleaning temperature:

80 … +100 °C (30 min/day)

Protection class:

IP 68/69K & proTect+

Vibration resistance:

EN 61373: 2010 (category 3), 5h per axis (14.4 gRMS, 10-500 Hz, EN 60068-2-64)

Shock resistance:

EN 61373: 2010 (category 3), 10 bumps per axis (100 g, 6 ms, EN 60068-2-27)

Datasheet:

View
