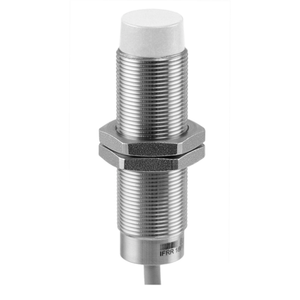

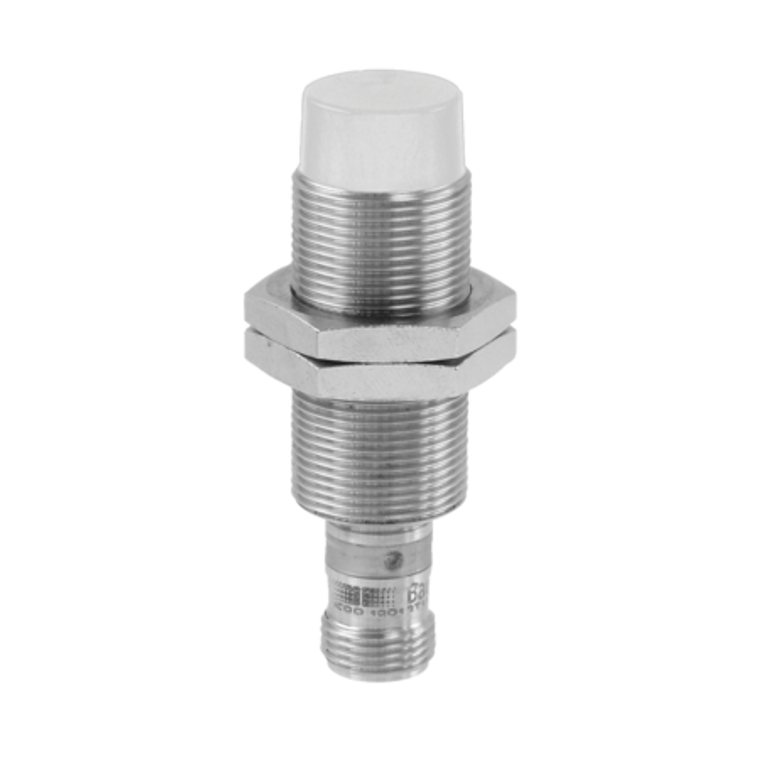

The Baumer IFRR 18P13T1/S14L-9 11016014 is a non-flush, cylindrical threaded proximity sensor designed for outdoor and washdown environments. It features a nominal sensing distance of 12 mm with a hysteresis range of 2 to 15% of Sr. Equipped with a red LED output indicator, it operates on a voltage supply range of 6 to 30 VDC and has a maximum current consumption of 10 mA with no load. The sensor offers a PNP make function (NO) output circuit, supporting an output current of 200 mA and reducing to less than 100 mA at cleaning temperatures. It includes short circuit and reverse polarity protection, and is constructed with an LCP sensing face and a stainless steel 1.4404 (V4A) housing. Dimensions include an 18 mm diameter and a 60 mm housing length, with an M12 connector type. It can withstand tightening torques up to 55 Nm and operates within a temperature range of -40 to +80 °C, handling cleaning temperatures up to 100 °C for 30 minutes per day. The sensor is rated IP 68/69K & proTect+ for high-level protection against dust and water ingress, and meets vibration and shock resistance standards EN 61373: 2010 (category 3) and EN 60068-2-64/27. Approvals include Ecolab certification, ensuring suitability for stringent hygiene requirements.
- Mounting type:
- Non-flush
- Special type:
- Outdoor design Washdown design
- Nominal sensing distance Sn:
- 12 mm
- Hysteresis:
- 2 15 % of Sr
- Output indicator:
- LED red
- Approvals/certificates:
- Ecolab
- Switching frequency:
- 500 Hz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- PNP make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Output current (at cleaning temperature):
- < 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel 1.4404 (V4A)
- Dimension:
- 18 mm
- Housing length:
- 60 mm
- Connection types:
- Connector M12
- Tightening torque max.:
- 55 Nm (Front: 38 Nm)
- Operating temperature:
- -40 +80 °C
- Cleaning temperature:
- 80 +100 °C (30 min/day)
- Protection class:
- IP 68/69K & proTect+
- Vibration resistance:
- EN 61373: 2010 (category 3), 5h per axis (14.4 gRMS, 10-500 Hz, EN 60068-2-64)
- Shock resistance:
- EN 61373: 2010 (category 3), 10 bumps per axis (100 g, 6 ms, EN 60068-2-27)
