Description

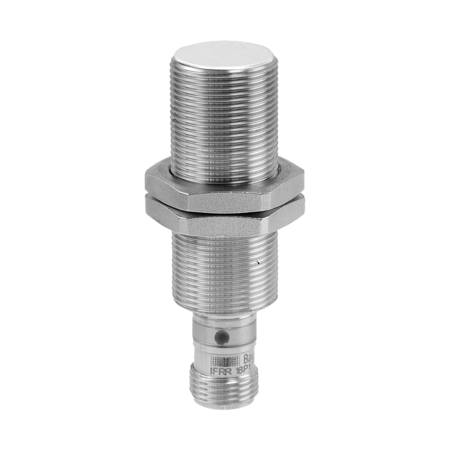

The Baumer IFRR 18P37T1/S14L-9 11013636 is a quasi-flush, cylindrical threaded proximity sensor designed for outdoor and washdown environments. It features a nominal sensing distance of 8 mm with a hysteresis of 2 to 15% of Sr. The sensor is equipped with a red LED output indicator and operates with a PNP break function (NC) output circuit. It supports a switching frequency of 500 Hz and can handle a voltage supply range of 6 to 30 VDC. The sensor's maximum current consumption is 10 mA with no load, and it has a voltage drop of less than 2 VDC. It can deliver an output current of 200 mA, which reduces to less than 100 mA at cleaning temperatures. The sensor is built with a sensing face made of LCP and a robust stainless steel 1.4404 (V4A) housing, measuring 18 mm in diameter and 60 mm in length. It connects via an M12 connector and can withstand a tightening torque of up to 55 Nm. Designed to operate in temperatures ranging from -40 to +80 °C and withstand cleaning temperatures between 80 to 100 °C for 30 minutes per day, it is highly durable with protection class IP 68/69K and proTect+. Additionally, the sensor offers excellent resistance to vibration and shock, complying with EN 61373: 2010 (category 3) standards. It includes short circuit and reverse polarity protection, ensuring reliable operation in challenging conditions. The sensor is Ecolab approved, highlighting its suitability for hygienic applications. For more detailed information, the datasheet is available [here](https://www.baumer.com/medias/__secure__/Baumer_IFRR-18P37T1-S14L-9_EN_20221110_DS.pdf?mediaPK=9056367345694).
