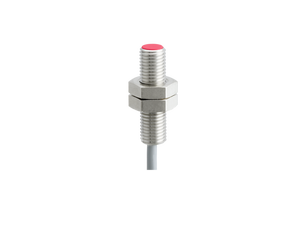

The Baumer IGYX 08P17B3/L is a flush-mounted inductive sensor with a nominal sensing distance of 2 mm and an assured sensing distance of 1.6 mm. It features a temperature drift of ±10% of Sr within a temperature range of 0 to +60 °C and a hysteresis of 3 to 20% of Sr. The sensor is equipped with a red LED output indicator and operates at a switching frequency of 3 kHz. It requires a voltage supply range of 10 to 30 VDC and has a maximum current consumption of 15 mA with no load. The output circuit is a PNP make function (NO) with a voltage drop of less than 2.5 VDC and an output current of 200 mA. It includes short circuit and reverse polarity protection. The sensor's design is cylindrical threaded, made from stainless steel with a PBT red sensing face, and measures 8 mm in diameter and 30 mm in housing length. It connects via a 2-meter cable and requires a maximum tightening torque of 5 Nm. Operating temperatures range from -25 to +75 °C, and it is rated IP 67 for protection against dust and water ingress. For more detailed information, refer to the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_IGYX-08P17B3-L_EN_20210429_DS.pdf?mediaPK=9018796343326).
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 2 mm
- Assured sensing distance Sa:
- 1.6 mm
- Temperature drift:
- ± 10 % of Sr (0 ... +60 °C)
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- LED red
- Switching frequency:
- 3 kHz
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 15 mA
- Output circuit:
- PNP make function (NO)
- Voltage drop Vd:
- <2.5 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT, red
- Housing material:
- Stainless steel
- Dimension:
- 8 mm
- Housing length:
- 30 mm
- Connection types:
- Cable, L=2 m
- Tightening torque max.:
- 5 Nm
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
