Baumer IO-Link Master, EtherNET/IP, 8-Port, IP20 11215448

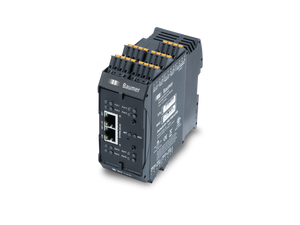

The Baumer IO-Link Master, EtherNET/IP, 8-Port, IP20 11215448 is a versatile network interface module designed for industrial automation. It features eight ports with LED indicators for digital input, Ethernet port status, IO-Link, module status, network status, and power supply. The device supports multiple communication interfaces including Ethernet and IO-Link, and is compatible with EtherNet/IP, Modbus TCP, and OPC UA protocols. Configuration is simplified through an integrated webserver. Connections are made via push-in connectors and a female RJ45. It operates on a power supply of 18 - 30 V DC, consumes 155 mA, and provides a current supply of US 3.7 A for both the master and sensors. The cubic model is housed in a polyamide, UL94V-0 rated enclosure, measuring 45 mm in width, 118 mm in height, and 114 mm in depth, and weighs 250 g. Links to the datasheet and operating manual are available for more detailed information.
- LED Indicators:
- Digital Input Ethernet Port Status IO-Link Module status Network status Power supply
- Communication Interfaces:
- Ethernet IO-Link
- Protocols:
- EtherNet/IP Modbus TCP OPC UA
- Software:
- Integrated webserver for configuration
- Connector:
- Push-In connector Female RJ45
- Power supply:
- 18 - 30 V DC
- Power Consumption:
- 155 mA
- Current supply:
- US 3.7 A (Master and Sensors)
- Model:
- Cubic
- Enclosure:
- Polyamide, UL94V-0
- Width:
- 45 mm
- Height:
- 118 mm
- Depth:
- 114 mm
- Weight:
- 250 g
- Datasheet:
- View
- Operating Manual:
- View
