Description

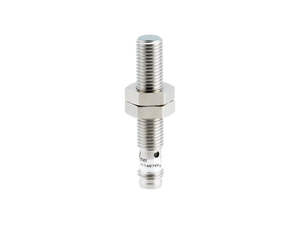

The Baumer IR06.D03L-F46.GP1I.7SL 11193946 is a high-precision, flush-mounted distance measuring sensor with a measuring range of 0 to 3 mm and a resolution of less than 0.005 mm in High Accuracy Mode. It features repeat accuracy of 0.01 mm and linearity errors of ±10 µm for distances up to 2 mm and ±90 µm up to 3 mm. The sensor supports IO-Link communication and offers single point, two point, and window teaching methods. It has a fast response time of less than 1 ms, a switching frequency of 1.25 kHz, and operates on a voltage supply range of 8 to 36 VDC. The sensor is equipped with LED indicators for power and output status, and offers protection against short circuits and reverse polarity. It is designed with a cylindrical smooth stainless steel housing, a PBT sensing face, and is IP67 rated for protection against dust and water ingress. Suitable for operating temperatures from -25 to +75 °C, it connects via an M8 connector. This sensor is ideal for applications requiring precise and reliable distance measurement.
