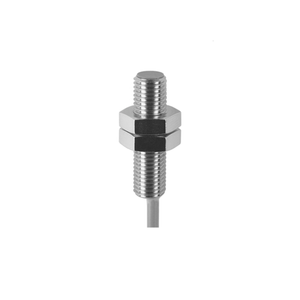

The Baumer IR06.D03S-Q30.UA1Z.7SCV 11144090 is a quasi-flush mounted inductive sensor designed for precise distance measurement with a range of 0 to 3 mm. It offers high resolution, achieving less than 0.001 mm in static and less than 0.01 mm in dynamic conditions. The sensor ensures repeat accuracy of 0.02 mm and features a linearity error of ±120 µm within a specific range and ±360 µm across the full range. It is equipped to handle temperature fluctuations with a drift of ±4% to ±6%, depending on the temperature range. The response time is less than 0.5 ms, ensuring quick feedback. This sensor operates on a voltage supply range of 12 to 36 VDC and consumes a maximum of 10 mA with no load. It outputs an analog signal (0 to 10 VDC) and supports a load resistance of over 4000 Ohm. Safety features include short circuit and reverse polarity protection. The sensor's design is cylindrical and smooth, made from durable stainless steel with a PBT sensing face, ensuring robustness in challenging environments. It measures 6.5 mm in diameter and 30 mm in length, and connects via a 2-meter cable. Suitable for operating temperatures ranging from -10 to +70 °C, the sensor is IP 67 certified, indicating high protection against dust and water ingress. Links to the datasheet and operating manual are provided for detailed specifications and usage guidelines.
- Mounting type:
- Quasi-flush
- Measuring distance Sd:
- 0 3 mm
- Resolution:
- < 0.001 mm (stat.) < 0.01 mm (dynam.)
- Repeat accuracy:
- 0.02 mm
- Linearity error:
- ± 120 µm (S = 0,75 ... 2,25 mm) ± 360 µm (S = 0 ... 3 mm)
- Temperature drift:
- ± 4 % (Full Scale: 0 ... +60 °C) ± 6 % (Full Scale: -10 ... +70 °C)
- Response time (factory characteristic):
- < 0.5 ms
- Voltage supply range +Vs:
- 12 36 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- Analog 0 ... 10 VDC
- Load resistance:
- > 4000 Ohm
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical smooth
- Material (sensing face):
- PBT
- Housing material:
- Stainless steel
- Dimension:
- 6.5 mm
- Housing length:
- 30 mm
- Connection types:
- Cable, L=2 m
- Operating temperature:
- -10 +70 °C
- Protection class:
- IP 67
