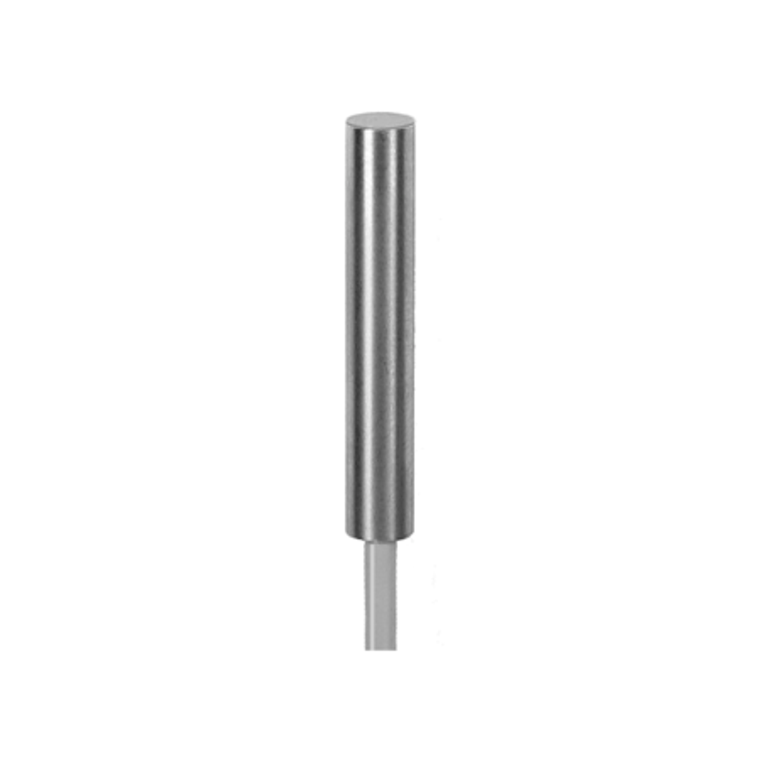

Baumer IR06.P02F-F40.PC1Z.7SCV 11119424
Baumer
$100.80
Baumer IR06.P02F-F40.PC1Z.7SCV 11119424 is a flush-mounted, cylindrical proximity sensor with a nominal sensing distance of 2 mm and an assured sensing distance of up to 81% of Sn. It features a PNP break function (NC) output circuit, LED red output indicator, and operates within a voltage supply range of 5 to 36 VDC. The sensor is designed with a stainless steel housing, PBT sensing face, and is equipped with short circuit and reverse polarity protection. It supports a switching frequency of 3 kHz and can handle an output current of 200 mA. The sensor is highly durable, offering IP 67 protection and resistance to vibrations and shocks as per IEC standards. It is suitable for detecting various metals with 100% correction factor for mild steel, stainless steel, aluminum, and copper. The sensor's dimensions are 6.5 mm in diameter and 40 mm in length, and it connects via a 2-meter cable. Operating and storage temperatures range from -25 to +75 °C.
- Mounting type:
- Flush
- Special type:
- Factor 1
- Nominal sensing distance Sn:
- 2 mm
- Assured sensing distance Sa:
- ? 81 % of Sn
- Real sensing distance Sr:
- ± 10 % von Sn
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- LED red
- Correction factor typ.:
- Mild steel 100 %, stainless steel 100 %, aluminum 100 %, copper 100 %
- Reference object:
- Fe360 6 x 6 x 1 mm
- Switching frequency:
- 3 kHz
- Voltage supply range +Vs:
- 5 36 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical smooth
- Material (sensing face):
- PBT
- Housing material:
- Stainless steel (V2A)
- Dimension:
- 6.5 mm
- Housing length:
- 40 mm
- Connection types:
- Cable, L=2 m
- Weight:
- 31 g
- Operating temperature:
- -25 +75 °C
- Storage temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Vibration resistance:
- IEC 60068-2-6:2008 10 g at f = 10 - 2000 Hz, duration 150 min per axis
- Shock resistance:
- IEC 60068-2-27:2009 100 g / 6 ms, 10 jolts per axis and direction
- Datasheet:
- View
