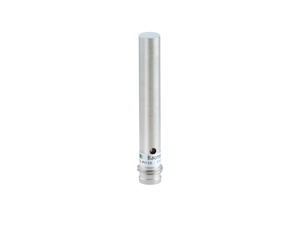

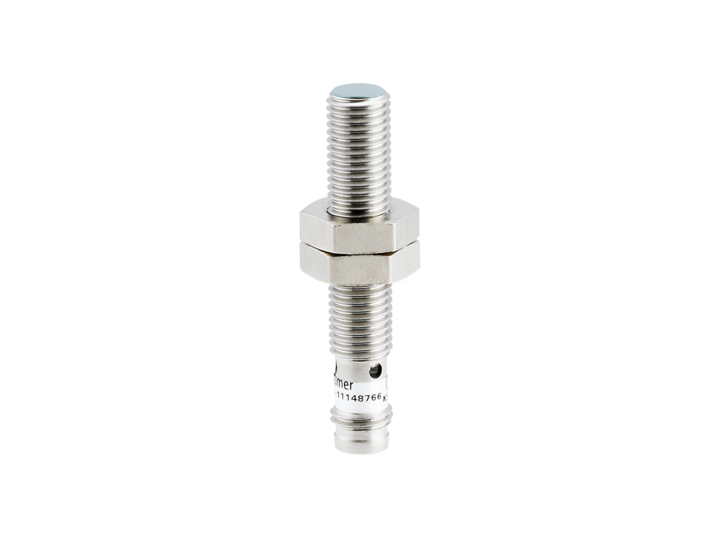

Baumer IR08.D03L-F46.GP1I.7SL 11193947 is a high-precision, flush-mounted distance measuring sensor with a measuring range of 0 to 3 mm and a resolution of less than 0.005 mm in High Accuracy Mode. It features repeat accuracy of 0.01 mm and linearity errors of ±10 µm for distances up to 2 mm and ±50 µm up to 3 mm. The sensor supports IO-Link communication and offers single point, two point, and window teaching methods. It has a fast response time of less than 1 ms, a switching frequency of 1.25 kHz, and operates on a voltage supply range of 8 to 36 VDC. The sensor is equipped with LED indicators for power and output status, and offers protection against short circuits and reverse polarity. It is designed with a cylindrical threaded stainless steel housing, a PBT sensing face, and an M8 connector. The sensor operates within a temperature range of -25 to +75 °C and is IP 67 rated for protection against dust and water ingress.
- Mounting type:
- Flush
- Special type:
- Linearized
- Type:
- Distance measuring
- Measuring distance Sd:
- 0 3 mm
- Resolution:
- < 0.005 mm (High Accuracy Mode)
- Repeat accuracy:
- 0.01 mm
- Adjustment:
- IO-Link
- Teach:
- Single point, Two point, Window
- Linearity error:
- ± 10 µm (S = 0 ... 2 mm) ± 50 µm (S = 0 ... 3 mm)
- Temperature drift:
- ± 2 % (Full Scale: S = 0 ... 2 mm) ± 4 % (Full Scale: S = 0 ... 3 mm)
- Hysteresis:
- < 99 % (adjustable)
- Power on indication:
- LED green
- Output indicator:
- LED yellow
- Response time (factory characteristic):
- < 1 ms
- Switching frequency:
- 1.25 kHz
- Voltage supply range +Vs:
- 8 36 VDC
- Current consumption max. (no load):
- 15 mA
- Output circuit:
- PNP Push-pull IO-Link
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Baud rate:
- 230.4 kBaud (COM 3)
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Stainless steel
- Dimension:
- 8 mm
- Housing length:
- 46 mm
- Connection types:
- Connector M8
- Tightening torque max.:
- 10 Nm (A: 7 Nm)
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
