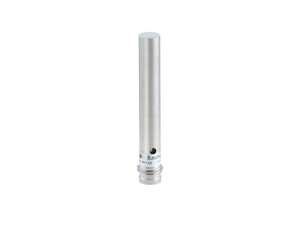

Baumer IR08.D03L-Q46.UA1T.7SL 11175999
Baumer
$438.30
Baumer IR08.D03L-Q46.UA1T.7SL 11175999 is a quasi-flush, cylindrical threaded sensor with a measuring distance of 0 to 3 mm and a high sensitivity of 3.33 V/mm. It offers excellent resolution, with less than 0.003 mm statically and up to 0.018 mm dynamically, depending on the measuring range. The sensor features repeat accuracy of 0.01 mm and linearity errors as low as ±10 µm. It is equipped with a Teach-in adjustment and LED yellow feedback for easy setup. The response time is less than 2 ms, ensuring quick readings. Operating on a voltage supply range of 12 to 30 VDC and a maximum current consumption of 12 mA, it includes analog output (0 to 10 VDC) and supports a load resistance over 4000 Ohm. The sensor is built with a PBT sensing face and a stainless steel housing, measuring 8 mm in diameter and 46 mm in length. It connects via an M8 connector and is designed to withstand operating temperatures from -25 to +75 °C. Safety features include short circuit and reverse polarity protection. The sensor is IP 67 rated, indicating high resistance to dust and water ingress.
- Mounting type:
- Quasi-flush
- Special type:
- Linearized
- Measuring distance Sd:
- 0 3 mm
- Sensitivity:
- 3,33 V/mm
- Resolution:
- < 0.003 mm (stat.) < 0.009 mm (dynam.,S = 0 ... 2 mm) < 0.018 mm (dynam.,S = 0 ... 3 mm)
- Repeat accuracy:
- 0.01 mm
- Adjustment:
- Teach-in
- Linearity error:
- ± 10 µm (S = 0 ... 2 mm) ± 90 µm (S = 0 ... 3 mm)
- Temperature drift:
- ± 2 % (Full Scale: S = 0 ... 2 mm) ± 6 % (Full Scale: S = 0 ... 3 mm)
- Teach-Feedback:
- LED yellow
- Response time (factory characteristic):
- < 2 ms
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- Analog 0 ... 10 VDC
- Load resistance:
- > 4000 Ohm
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Stainless steel
- Dimension:
- 8 mm
- Housing length:
- 46 mm
- Connection types:
- Connector M8
- Tightening torque max.:
- 10 Nm (A: 7 Nm)
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
