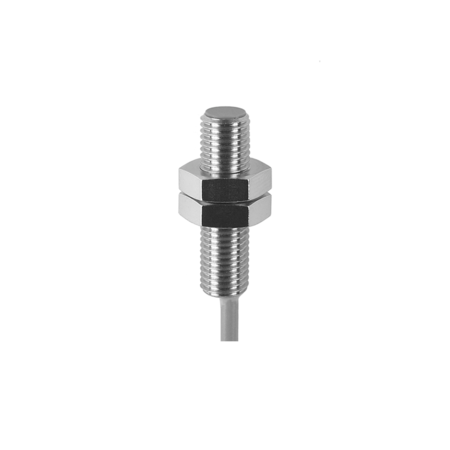

The Baumer IR08.D03S-Q30.UA1Z.7SCV 11141037 is a quasi-flush, cylindrical threaded sensor with a measuring distance of 0 to 3 mm and a high resolution of less than 0.001 mm (static) and less than 0.01 mm (dynamic). It offers repeat accuracy of 0.02 mm and linearity errors ranging from ±120 µm to ±360 µm. The sensor is designed to handle temperature drifts with a variance of ±4% to ±6% and has a quick response time of less than 0.5 ms. Operating on a voltage supply range of 12 to 36 VDC and a maximum current consumption of 10 mA, it features an analog output of 0 to 10 VDC and supports a load resistance over 4000 Ohm. It includes short circuit and reverse polarity protection, and is constructed with a PBT sensing face and stainless steel housing. Dimensions include an 8 mm diameter and 30 mm housing length, with a 2 m cable connection. It can operate in temperatures ranging from -10 to +70 °C, has a maximum tightening torque of 10 Nm, and is IP 67 rated for protection against dust and immersion.
- Mounting type:
- Quasi-flush
- Measuring distance Sd:
- 0 3 mm
- Resolution:
- < 0.001 mm (stat.) < 0.01 mm (dynam.)
- Repeat accuracy:
- 0.02 mm
- Linearity error:
- ± 120 µm (S = 0,75 ... 2,25 mm) ± 360 µm (S = 0 ... 3 mm)
- Temperature drift:
- ± 4 % (Full Scale: 0 ... +60 °C) ± 6 % (Full Scale: -10 ... +70 °C)
- Response time (factory characteristic):
- < 0.5 ms
- Voltage supply range +Vs:
- 12 36 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- Analog 0 ... 10 VDC
- Load resistance:
- > 4000 Ohm
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Stainless steel
- Dimension:
- 8 mm
- Housing length:
- 30 mm
- Connection types:
- Cable, L=2 m
- Tightening torque max.:
- 10 Nm (A: 7 Nm)
- Operating temperature:
- -10 +70 °C
- Protection class:
- IP 67
