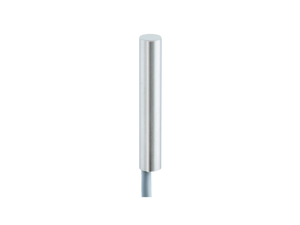

Baumer IR08.D03S-Q40.UA1Z.7SCV 11130473

Baumer
SKU:
11130473
$360.70
Condition:
New
Current Stock:
Baumer IR08.D03S-Q40.UA1Z.7SCV 11130473 is a quasi-flush mounted inductive sensor with a measuring distance of 0 to 3 mm and a high resolution of less than 0.001 mm (static) and less than 0.01 mm (dynamic). It features repeat accuracy of 0.02 mm and linearity errors of ±120 µm within 0.75 to 2.25 mm and ±360 µm across the full range. The sensor has a temperature drift of ±4% at 0 to +60 °C and ±6% at -10 to +70 °C, with a quick response time of less than 0.5 ms. Operating on a voltage supply range of 12 to 36 VDC and a maximum current consumption of 10 mA, it offers an analog output of 0 to 10 VDC and requires a load resistance of over 4000 Ohm. It includes short circuit and reverse polarity protection. The sensor's cylindrical threaded design features a PBT sensing face and a stainless steel housing, measuring 8 mm in diameter and 40 mm in length. It connects via a 2-meter cable and supports an operating temperature range of -10 to +70 °C. With an IP 67 protection class, it ensures robust performance in demanding environments. Tightening torque is capped at 10 Nm. Links to the datasheet and operating manual are provided for detailed specifications and usage guidelines.
Mounting type:
Quasi-flush
Measuring distance Sd:
0 … 3 mm
Resolution:
< 0.001 mm (stat.) < 0.01 mm (dynam.)
Repeat accuracy:
0.02 mm
Linearity error:
± 120 µm (S = 0,75 ... 2,25 mm) ± 360 µm (S = 0 ... 3 mm)
Temperature drift:
± 4 % (Full Scale: 0 ... +60 °C) ± 6 % (Full Scale: -10 ... +70 °C)
Response time (factory characteristic):
< 0.5 ms
Voltage supply range +Vs:
12 … 36 VDC
Current consumption max. (no load):
10 mA
Output circuit:
Analog 0 ... 10 VDC
Load resistance:
> 4000 Ohm
Short circuit protection:
Yes
Reverse polarity protection:
Yes
Design:
Cylindrical threaded
Material (sensing face):
PBT
Housing material:
Stainless steel
Dimension:
8 mm
Housing length:
40 mm
Connection types:
Cable, L=2 m
Tightening torque max.:
10 Nm (A: 7 Nm)
Operating temperature:
-10 … +70 °C
Protection class:
IP 67
Datasheet:
View
Operating Manual:
View
