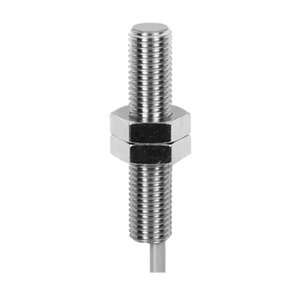

The Baumer IR08.P02F-F40.PC1Z.7SCV 11119430 is a flush-mounted, cylindrical threaded proximity sensor with a nominal sensing distance of 2 mm and an assured sensing distance of up to 81% of Sn. It features a temperature drift of ±10% of the real sensing distance, which itself varies by ±10% of Sn, and a hysteresis range of 3-20% of Sr. The sensor is equipped with a red LED output indicator and supports a correction factor of 100% for various metals including mild steel, stainless steel, aluminum, and copper. It operates at a switching frequency of 3 kHz and requires a voltage supply range of 5 to 36 VDC, with a maximum current consumption of 12 mA when no load is present. The output circuit is a PNP break function (NC) with a maximum output current of 200 mA. It includes short circuit and reverse polarity protection, and is designed with a PBT sensing face and stainless steel housing. The sensor has a diameter of 8 mm, a length of 40 mm, and comes with a 2-meter cable. It can be tightened with a maximum torque of 7 Nm and weighs 40 g. Suitable for operating temperatures between -25 to +75 °C, it offers IP 67 protection and is resistant to vibrations and shocks as per IEC standards.
- Mounting type:
- Flush
- Special type:
- Factor 1
- Nominal sensing distance Sn:
- 2 mm
- Assured sensing distance Sa:
- ? 81 % of Sn
- Real sensing distance Sr:
- ± 10 % von Sn
- Temperature drift:
- ± 10 % of Sr
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- LED red
- Correction factor typ.:
- Mild steel 100 %, stainless steel 100 %, aluminum 100 %, copper 100 %
- Reference object:
- Fe360 8 x 8 x 1 mm
- Switching frequency:
- 3 kHz
- Voltage supply range +Vs:
- 5 36 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Stainless steel (V2A)
- Dimension:
- 8 mm
- Housing length:
- 40 mm
- Connection types:
- Cable, L=2 m
- Tightening torque max.:
- 7 Nm
- Weight:
- 40 g
- Operating temperature:
- -25 +75 °C
- Storage temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Vibration resistance:
- IEC 60068-2-6:2008 10 g at f = 10 - 2000 Hz, duration 150 min per axis
- Shock resistance:
- IEC 60068-2-27:2009 100 g / 6 ms, 10 jolts per axis and direction
