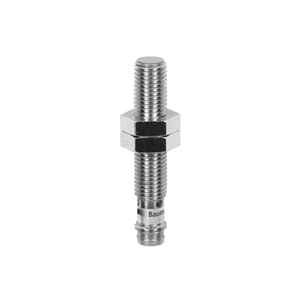

Baumer IR08.P02F-F46.NO1Z.7SL 11116607 is a flush-mounted, cylindrical threaded proximity sensor with a nominal sensing distance of 2 mm and an assured sensing distance of up to 81% of Sn. It features a temperature drift of ±10% of the real sensing distance, which itself varies by ±10% of Sn, and a hysteresis range of 3-20% of Sr. The sensor is equipped with a red LED output indicator and offers a correction factor of 100% for various metals including mild steel, stainless steel, aluminum, and copper. It operates with a switching frequency of 3 kHz and a voltage supply range of 5-36 VDC, consuming a maximum of 12 mA with no load. The output circuit is an NPN make function (NO) with a voltage drop of less than 2 VDC and an output current of 200 mA. It includes short circuit and reverse polarity protection. The sensor's housing is made of stainless steel (V2A) and PBT for the sensing face, measuring 8 mm in diameter and 46 mm in length. It connects via a 3-pin M8 connector and can be tightened with a maximum torque of 7 Nm. Weighing 13 g, it operates between -25 to +75 °C and is rated IP 67 for protection against dust and water ingress. It withstands vibrations and shocks as per IEC standards.
- Mounting type:
- Flush
- Special type:
- Factor 1
- Nominal sensing distance Sn:
- 2 mm
- Assured sensing distance Sa:
- ? 81 % of Sn
- Real sensing distance Sr:
- ± 10 % von Sn
- Temperature drift:
- ± 10 % of Sr
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- LED red
- Correction factor typ.:
- Mild steel 100 %, stainless steel 100 %, aluminum 100 %, copper 100 %
- Reference object:
- Fe360 8 x 8 x 1 mm
- Switching frequency:
- 3 kHz
- Voltage supply range +Vs:
- 5 36 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- NPN make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Stainless steel (V2A)
- Dimension:
- 8 mm
- Housing length:
- 46 mm
- Connection types:
- Connector M8, 3 pin
- Tightening torque max.:
- 7 Nm
- Weight:
- 13 g
- Operating temperature:
- -25 +75 °C
- Storage temperature:
- -40 +75 °C
- Protection class:
- IP 67
- Vibration resistance:
- IEC 60068-2-6:2008 10 g at f = 10 - 2000 Hz, duration 150 min per axis
- Shock resistance:
- IEC 60068-2-27:2009 100 g / 6 ms, 10 jolts per axis and direction
