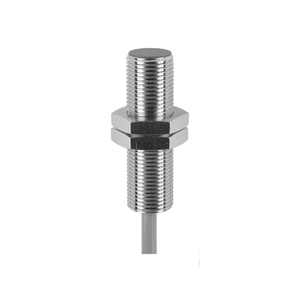

Baumer IR12.D04S-F40.UA1Z.7BCV 11130475 is a flush-mounted inductive sensor with a measuring distance of 0 to 4 mm and a high resolution of less than 0.001 mm (static) and less than 0.005 mm (dynamic). It features repeat accuracy of 0.01 mm and linearity errors of ±80 µm for distances of 1 to 3 mm and ±280 µm for 0 to 4 mm. The sensor is designed to handle temperature drifts of ±2% at 0 to +60 °C and ±3% at -25 to +75 °C, with a quick response time of less than 1 ms. It operates on a voltage supply range of 12 to 36 VDC and consumes a maximum of 10 mA with no load. The output circuit is analog 0 to 10 VDC, suitable for load resistances over 4000 Ohm. It includes short circuit and reverse polarity protection. The sensor's cylindrical threaded design features a PBT sensing face and a brass nickel-plated housing, measuring 12 mm in diameter and 40 mm in length. It connects via a 2 m cable and requires a maximum tightening torque of 15 Nm. Operating temperatures range from -25 to +75 °C, and it is rated IP 67 for protection against dust and immersion.
- Mounting type:
- Flush
- Measuring distance Sd:
- 0 4 mm
- Resolution:
- < 0.001 mm (stat.) < 0.005 mm (dynam.)
- Repeat accuracy:
- 0.01 mm
- Linearity error:
- ± 80 µm (S = 1 ... 3 mm) ± 280 µm (S = 0 ... 4 mm)
- Temperature drift:
- ± 2 % (Full Scale: 0 ... +60 °C) ± 3 % (Full Scale: -25 ... +75 °C)
- Response time (factory characteristic):
- < 1 ms
- Voltage supply range +Vs:
- 12 36 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- Analog 0 ... 10 VDC
- Load resistance:
- > 4000 Ohm
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 12 mm
- Housing length:
- 40 mm
- Connection types:
- Cable, L=2 m
- Tightening torque max.:
- 15 Nm (A: 10 Nm)
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
