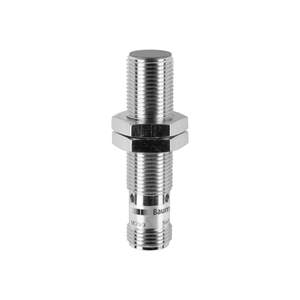

Baumer IR12.D04S-F50.UA1Z.7BO 11123876
Baumer
$350.20
The Baumer IR12.D04S-F50.UA1Z.7BO 11123876 is a high-precision inductive sensor with a flush mounting type and a measuring distance of 0 to 4 mm. It offers exceptional resolution, with less than 0.001 mm in static and less than 0.005 mm in dynamic conditions, and a repeat accuracy of 0.01 mm. The sensor features a linearity error of ±80 µm for distances of 1 to 3 mm and ±280 µm for the full range of 0 to 4 mm. It is designed to handle temperature fluctuations with a drift of ±2% at temperatures from 0 to +60 °C and ±3% from -25 to +75 °C. The response time is less than 1 ms, ensuring quick feedback for applications requiring rapid data processing. This sensor operates on a voltage supply range of 12 to 36 VDC and consumes a maximum of 10 mA with no load. It outputs an analog signal of 0 to 10 VDC and can handle a load resistance of over 4000 Ohm. Safety features include short circuit and reverse polarity protection. The cylindrical threaded design, made from brass nickel-plated housing and a PBT sensing face, ensures durability and resistance to environmental factors. Dimensions include a 12 mm diameter and a 50 mm housing length, with an M12 connector type for easy integration. The sensor can be tightened with a maximum torque of 15 Nm and operates effectively in temperatures ranging from -25 to +75 °C. It is IP 67 rated, indicating a high level of protection against dust and water ingress. Links to the datasheet and operating manual are provided for detailed technical specifications and usage guidelines.
- Mounting type:
- Flush
- Measuring distance Sd:
- 0 4 mm
- Resolution:
- < 0.001 mm (stat.) < 0.005 mm (dynam.)
- Repeat accuracy:
- 0.01 mm
- Linearity error:
- ± 80 µm (S = 1 ... 3 mm) ± 280 µm (S = 0 ... 4 mm)
- Temperature drift:
- ± 2 % (Full Scale: 0 ... +60 °C) ± 3 % (Full Scale: -25 ... +75 °C)
- Response time (factory characteristic):
- < 1 ms
- Voltage supply range +Vs:
- 12 36 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- Analog 0 ... 10 VDC
- Load resistance:
- > 4000 Ohm
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 12 mm
- Housing length:
- 50 mm
- Connection types:
- Connector M12
- Tightening torque max.:
- 15 Nm (A: 10 Nm)
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
