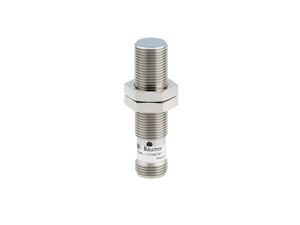

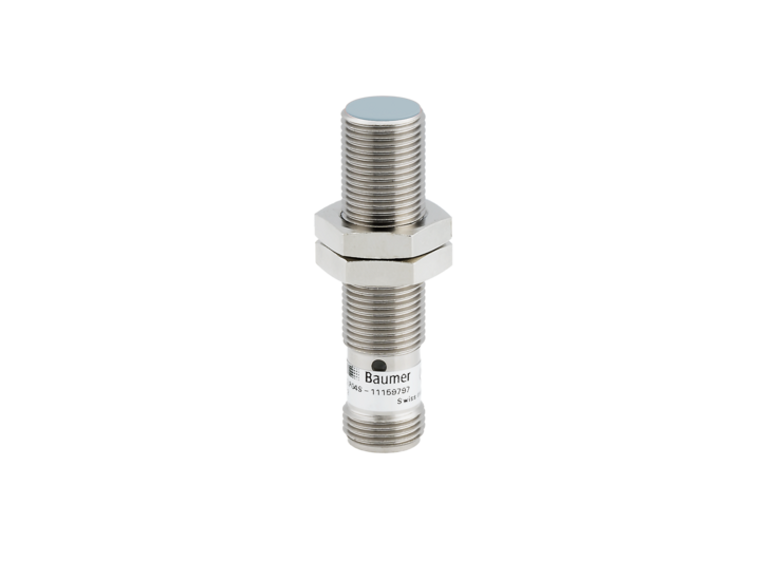

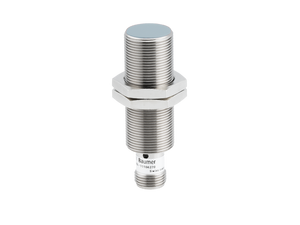

The Baumer IR12.D06L-F50.GP1I.7BF 11193948 is a high-precision distance measuring sensor with a measuring range of 0 to 6 mm and a resolution of less than 0.003 mm in High Accuracy Mode. It features repeat accuracy of 0.01 mm and linearity errors of ± 25 µm for distances up to 4 mm and ± 60 µm up to 6 mm. The sensor supports IO-Link communication and offers various teaching methods including single point, two point, and window. It is designed with a cylindrical threaded brass nickel-plated housing, measures 12 mm in diameter and 50 mm in length, and includes a PBT sensing face. The sensor operates within a voltage supply range of 8 to 36 VDC, has a maximum current consumption of 15 mA, and can handle output currents up to 100 mA. It features short circuit and reverse polarity protection, operates at a temperature range of -25 to +75 °C, and is rated IP 67 for protection against dust and water ingress. The sensor also includes green and yellow LED indicators for power and output status, respectively, and has a fast response time of less than 1 ms with a switching frequency of 1 kHz.
- Mounting type:
- Flush
- Special type:
- Linearized
- Type:
- Distance measuring
- Measuring distance Sd:
- 0 6 mm
- Resolution:
- < 0.003 mm (High Accuracy Mode)
- Repeat accuracy:
- 0.01 mm
- Adjustment:
- IO-Link
- Teach:
- Single point, Two point, Window
- Linearity error:
- ± 25 µm (S = 0 ... 4 mm) ± 60 µm (S = 0 ... 6 mm)
- Temperature drift:
- ± 2 % (Full Scale: S = 0 ... 4 mm) ± 3 % (Full Scale: S = 0 ... 6 mm)
- Hysteresis:
- < 99 % (adjustable)
- Power on indication:
- LED green
- Output indicator:
- LED yellow
- Response time (factory characteristic):
- < 1 ms
- Switching frequency:
- 1 kHz
- Voltage supply range +Vs:
- 8 36 VDC
- Current consumption max. (no load):
- 15 mA
- Output circuit:
- PNP Push-pull IO-Link
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Baud rate:
- 230.4 kBaud (COM 3)
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 12 mm
- Housing length:
- 50 mm
- Connection types:
- Connector M12
- Tightening torque max.:
- 15 Nm (Front: 10 Nm)
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
