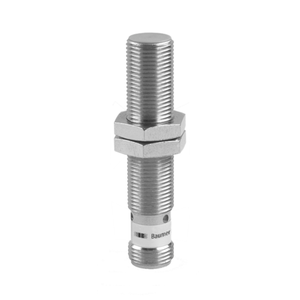

The Baumer IR12.D06L-Q60.IA1E.7BO 11157693 is a quasi-flush, cylindrical threaded sensor with a measuring distance of 0 to 6 mm and a high sensitivity of 2.67 mA/mm. It offers exceptional resolution and repeat accuracy, with values less than 0.003 mm statically and dynamically varying based on the measuring range. The sensor features external teach-in capabilities, including 1-point and 2-point analog adjustments, and a factory reset option. It has a linearity error as low as ± 25 µm for distances up to 4 mm and ± 120 µm up to 6 mm. Temperature stability is maintained within ± 2% for shorter ranges and ± 5% for the full range. The sensor is equipped with a yellow LED for teach-feedback, operates with a response time of less than 1 ms, and supports a voltage supply range of 8 to 36 VDC. It includes short circuit and reverse polarity protection, and is designed with a brass nickel-plated housing and a PBT sensing face. The sensor is IP 67 rated for protection against dust and immersion, operates within a temperature range of -25 to +75 °C, and can handle a maximum tightening torque of 15 Nm. It connects via an M12 connector, ensuring robust and reliable connectivity.
- Mounting type:
- Quasi-flush
- Special type:
- Linearized
- Measuring distance Sd:
- 0 6 mm
- Sensitivity:
- 2,67 mA/mm
- Resolution:
- < 0.003 mm (stat.) < 0.005 mm (dynam.,S = 0 ... 4 mm) < 0.022 mm (dynam.,S = 0 ... 6 mm)
- Repeat accuracy:
- 0.01 mm
- Adjustment:
- External Teach-in
- Teach:
- 1-point analog, 2-point analog, factory reset
- Linearity error:
- ± 25 µm (S = 0 ... 4 mm) ± 120 µm (S = 0 ... 6 mm)
- Temperature drift:
- ± 2 % (Full Scale: S = 0 ... 4 mm) ± 5 % (Full Scale: S = 0 ... 6 mm)
- Teach-Feedback:
- LED yellow
- Response time (factory characteristic):
- < 1 ms
- Voltage supply range +Vs:
- 8 36 VDC
- Current consumption max. (no load):
- 25 mA
- Output circuit:
- Analog 4 ... 20 mA
- Load resistance:
- < 50 Ohm/V * Vs - 250 Ohm > 500 Ohm (Vs = 30 36 VDC)
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 12 mm
- Housing length:
- 60 mm
- Connection types:
- Connector M12
- Tightening torque max.:
- 15 Nm (A: 10 Nm)
- Operating temperature:
- -25 +75 °C (Vs = 8 ... 30 VDC) -25 +60 °C (Vs = 8 ... 36 VDC)
- Protection class:
- IP 67
