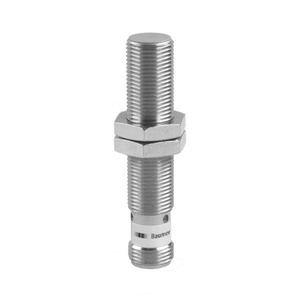

Baumer IR12.D06L-Q60.UAME.7BO 11135332 is a quasi-flush mounted sensor with dual adjustable switching points and linearized output. It offers a measuring distance of 0 to 6 mm with a sensitivity of 1.67 V/mm and high resolution levels, ensuring precise measurements with repeat accuracy of 0.01 mm. The sensor features external teach-in adjustments, including 1-point analog and window digital options, along with a factory reset. It has a linearity error of ±25 µm for distances up to 4 mm and ±60 µm up to 6 mm, with minimal temperature drift. Equipped with LED indicators for output and teach-feedback, it responds in less than 1 ms. The sensor operates on a 12 to 36 VDC supply, with a maximum current consumption of 15 mA when unloaded. It supports an analog output of 0 to 10 VDC and a PNP output circuit, with a load resistance over 4000 Ohm and an output current of 100 mA. Safety features include short circuit and reverse polarity protection. The sensor's cylindrical, nickel-plated brass housing measures 12 mm in diameter and 60 mm in length, with an M12 connector type. It operates effectively within a temperature range of -25 to +75 °C and offers IP67 protection, making it suitable for a variety of industrial applications.
- Mounting type:
- Quasi-flush
- Special type:
- 2 adjust. switching points Linearized
- Measuring distance Sd:
- 0 6 mm
- Sensitivity:
- 1,67 V/mm
- Resolution:
- < 0.003 mm (stat.) < 0.005 mm (dynam.,S = 0 ... 4 mm) < 0.022 mm (dynam.,S = 0 ... 6 mm)
- Repeat accuracy:
- 0.01 mm
- Adjustment:
- External Teach-in
- Teach:
- 1-point analog, window digital, factory reset
- Linearity error:
- ± 25 µm (S = 0 ... 4 mm) ± 60 µm (S = 0 ... 6 mm)
- Temperature drift:
- ± 2 % (Full Scale: S = 0 ... 4 mm) ± 5 % (Full Scale: S = 0 ... 6 mm)
- Output indicator:
- LED red
- Teach-Feedback:
- LED yellow
- Response time (factory characteristic):
- < 1 ms
- Voltage supply range +Vs:
- 12 36 VDC
- Current consumption max. (no load):
- 15 mA
- Output circuit:
- Analog 0 ... 10 VDC PNP
- Load resistance:
- > 4000 Ohm
- Output current:
- 100 mA (PNP)
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 12 mm
- Housing length:
- 60 mm
- Connection types:
- Connector M12
- Tightening torque max.:
- 15 Nm (A: 10 Nm)
- Operating temperature:
- -25 +75 °C (Vs = 12 ... 30 VDC) -25 +60 °C (Vs = 12 ... 36 VDC)
- Protection class:
- IP 67
