Baumer IR12.D06S-Q50.UA1Z.7BO 11123877
Baumer
$389.90

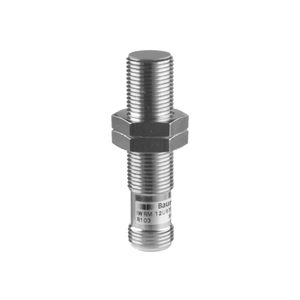

The Baumer IR12.D06S-Q50.UA1Z.7BO 11123877 is a quasi-flush, cylindrical threaded sensor with a measuring distance of 0 to 6 mm and a high resolution of less than 0.005 mm (static) and less than 0.01 mm (dynamic). It features repeat accuracy of 0.01 mm and linearity errors of ±300 µm within 1.5 to 4.5 mm and ±720 µm across the full range. The sensor is designed to handle temperature drifts of ±4% up to 60°C and ±6% up to 75°C, with a rapid response time of less than 1 ms. It operates on a voltage supply range of 12 to 36 VDC and consumes a maximum of 10 mA with no load. The output is an analog 0 to 10 VDC, suitable for loads over 4000 Ohm. It includes short circuit and reverse polarity protection. The sensor's housing is made of brass nickel-plated material with a PBT sensing face, and it connects via an M12 connector. It is designed to operate in temperatures ranging from -25 to +75°C and is IP67 rated for protection against dust and immersion.
- Mounting type:
- Quasi-flush
- Measuring distance Sd:
- 0 6 mm
- Resolution:
- < 0.005 mm (stat.) < 0.01 mm (dynam.)
- Repeat accuracy:
- 0.01 mm
- Linearity error:
- ± 300 µm (S = 1,5 ... 4,5 mm) ± 720 µm (S = 0 ... 6 mm)
- Temperature drift:
- ± 4 % (Full Scale: 0 ... +60 °C) ± 6 % (Full Scale: -25 ... +75 °C)
- Response time (factory characteristic):
- < 1 ms
- Voltage supply range +Vs:
- 12 36 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- Analog 0 ... 10 VDC
- Load resistance:
- > 4000 Ohm
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 12 mm
- Housing length:
- 50 mm
- Connection types:
- Connector M12
- Tightening torque max.:
- 15 Nm (A: 10 Nm)
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
