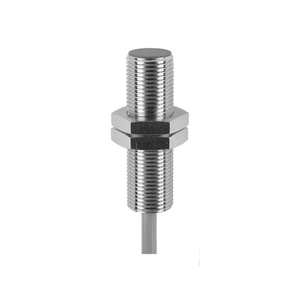

The Baumer IR12.P04F-F40.PO1Z.7BCV 11119436 is a flush-mounted, cylindrical threaded proximity sensor with a nominal sensing distance of 4 mm and an assured sensing distance of up to 81% of Sn. It features a temperature drift and hysteresis of ±10% and 3-20% of the real sensing distance, respectively. The sensor is equipped with a red LED output indicator and supports a switching frequency of 2 kHz. It operates on a voltage supply range of 5 to 36 VDC with a maximum current consumption of 12 mA. The output circuit is a PNP make function (NO) with a maximum output current of 200 mA. It includes short circuit and reverse polarity protection. The sensor's housing is made of brass nickel-plated material, and the sensing face is PBT. It measures 12 mm in diameter and 40 mm in length, with a connection cable of 2 m. The sensor can handle a tightening torque of up to 10 Nm and weighs 71 g. It operates within a temperature range of -25 to +75 °C and is rated IP 67 for protection against dust and water ingress. It also meets IEC standards for vibration and shock resistance.
- Mounting type:
- Flush
- Special type:
- Factor 1
- Nominal sensing distance Sn:
- 4 mm
- Assured sensing distance Sa:
- ? 81 % of Sn
- Real sensing distance Sr:
- ± 10 % von Sn
- Temperature drift:
- ± 10 % of Sr
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- LED red
- Correction factor typ.:
- Mild steel 100 %, stainless steel 100 %, aluminum 100 %, copper 100 %
- Reference object:
- Fe360 12 x 12 x 1 mm
- Switching frequency:
- 2 kHz
- Voltage supply range +Vs:
- 5 36 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- PNP make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 12 mm
- Housing length:
- 40 mm
- Connection types:
- Cable, L=2 m
- Tightening torque max.:
- 10 Nm
- Weight:
- 71 g
- Operating temperature:
- -25 +75 °C
- Storage temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Vibration resistance:
- IEC 60068-2-6:2008 10 g at f = 10 - 2000 Hz, duration 150 min per axis
- Shock resistance:
- IEC 60068-2-27:2009 100 g / 6 ms, 10 jolts per axis and direction
