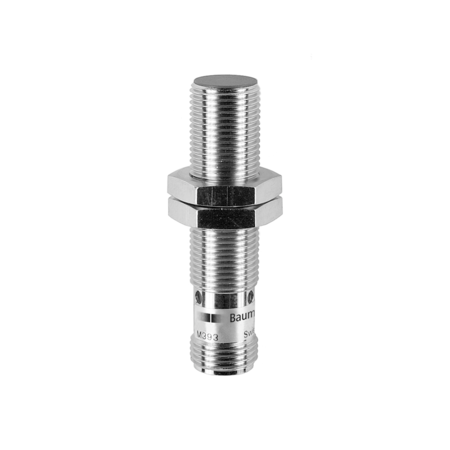

Baumer IR12.P04F-F50.NC1Z.7BO 11119435
Baumer
$74.90
Baumer IR12.P04F-F50.NC1Z.7BO 11119435 is a flush-mounted, cylindrical threaded proximity sensor with a nominal sensing distance of 4 mm and assured sensing distance of up to 81% of Sn. It features a temperature drift of ±10% of the real sensing distance, which itself varies by ±10% of Sn, and a hysteresis range of 3-20% of Sr. The sensor is equipped with a red LED output indicator and supports a correction factor of 100% for various metals including mild steel, stainless steel, aluminum, and copper. It operates on a voltage supply range of 5-36 VDC, with a maximum current consumption of 12 mA, and can handle an output current of 200 mA. The sensor includes short circuit and reverse polarity protection, and is designed with a PBT sensing face and brass nickel-plated housing. It connects via an M12 4-pin connector, has a housing length of 50 mm, and weighs 25 g. The sensor operates within a temperature range of -25 to +75 °C, is IP 67 rated for protection, and is resistant to vibrations and shocks as per IEC standards.
- Mounting type:
- Flush
- Special type:
- Factor 1
- Nominal sensing distance Sn:
- 4 mm
- Assured sensing distance Sa:
- ? 81 % of Sn
- Real sensing distance Sr:
- ± 10 % von Sn
- Temperature drift:
- ± 10 % of Sr
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- LED red
- Correction factor typ.:
- Mild steel 100 %, stainless steel 100 %, aluminum 100 %, copper 100 %
- Reference object:
- Fe360 12 x 12 x 1 mm
- Switching frequency:
- 2 kHz
- Voltage supply range +Vs:
- 5 36 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- NPN break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 12 mm
- Housing length:
- 50 mm
- Connection types:
- Connector M12 4 pin
- Tightening torque max.:
- 10 Nm
- Weight:
- 25 g
- Operating temperature:
- -25 +75 °C
- Storage temperature:
- -40 +75 °C
- Protection class:
- IP 67
- Vibration resistance:
- IEC 60068-2-6:2008 10 g at f = 10 - 2000 Hz, duration 150 min per axis
- Shock resistance:
- IEC 60068-2-27:2009 100 g / 6 ms, 10 jolts per axis and direction
- Datasheet:
- View
