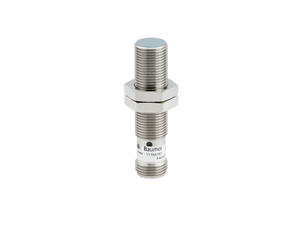

The Baumer IR12.P04S-F50.PO1Z.7VO/Z001_E009 11158406 is a flush-mounted, marine-grade inductive sensor with a nominal sensing distance of 4 mm. It features a temperature drift of ±20%, hysteresis of 2 to 18% of Sr, and a 3-port red LED output indicator. The sensor has a correction factor of 100% for mild steel, 75% for stainless steel, and 45% for aluminum. It is certified by DNV GL and has a switching frequency of 1 kHz. The voltage supply range is 6 to 36 VDC, with a normal operating voltage of 24 VDC, and a maximum current consumption of 12 mA when no load is present. The output circuit is a PNP make function (NO), with a voltage drop of less than 2 VDC and an output current of 100 mA. It includes short circuit and reverse polarity protection. The sensor's design is cylindrical threaded, made from stainless steel 1.4404 (V4A) with a PBT sensing face, and has dimensions of 12 mm in diameter and 50 mm in housing length. It connects via an M12 connector and requires a maximum tightening torque of 20 Nm. The operating temperature range is -40 to +75 °C, and it is rated IP 67 for protection.
- Mounting type:
- Flush
- Special type:
- Marine
- Nominal sensing distance Sn:
- 4 mm
- Temperature drift:
- ± 20 %
- Hysteresis:
- 2 18 % of Sr
- Output indicator:
- 3 port LED red
- Correction factor typ.:
- Mild steel 100 %, stainless steel 75 %, aluminum 45 %
- Approvals/certificates:
- DNV GL
- Switching frequency:
- 1 kHz
- Voltage supply range +Vs:
- 6 36 VDC
- Normal operating voltage:
- 24 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- PNP make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Stainless steel 1.4404 (V4A)
- Dimension:
- 12 mm
- Housing length:
- 50 mm
- Connection types:
- Connector M12
- Tightening torque max.:
- 20 Nm (A: 12 Nm)
- Operating temperature:
- -40 +75 °C
- Protection class:
- IP 67
