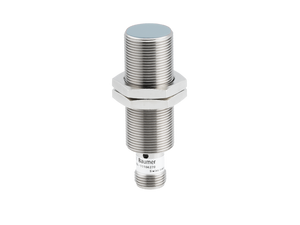

The Baumer IR18.D08S-Q60.UA1Z.7BO 11123879 is a quasi-flush mounting sensor with a measuring distance of 0 to 8 mm and a high resolution of less than 0.002 mm (static) and less than 0.006 mm (dynamic). It features repeat accuracy of 0.015 mm and linearity errors of ±240 µm for distances of 2 to 6 mm and ±640 µm for the full range of 0 to 8 mm. The sensor is designed to handle temperature drifts of ±2% at temperatures from 0 to +60 °C and ±4% from -10 to +70 °C. It has a fast response time of less than 2 ms, operates on a voltage supply range of 12 to 36 VDC, and consumes a maximum of 10 mA with no load. The output circuit is analog 0 to 10 VDC, and it supports a load resistance of over 4000 Ohm. It includes short circuit and reverse polarity protection. The sensor's cylindrical threaded design features a PBT sensing face and a brass nickel-plated housing, measuring 18 mm in diameter and 60 mm in length. It connects via an M12 connector and requires a maximum tightening torque of 40 Nm. Suitable for operating temperatures ranging from -10 to +70 °C, it is IP 67 rated for protection against dust and immersion.
- Mounting type:
- Quasi-flush
- Measuring distance Sd:
- 0 8 mm
- Resolution:
- < 0.002 mm (stat.) < 0.006 mm (dynam.)
- Repeat accuracy:
- 0.015 mm
- Linearity error:
- ± 240 µm (S = 2 ... 6 mm) ± 640 µm (S = 0 ... 8 mm)
- Temperature drift:
- ± 2 % (Full Scale: 0 ... +60 °C) ± 4 % (Full Scale: -10 ... +70 °C)
- Response time (factory characteristic):
- < 2 ms
- Voltage supply range +Vs:
- 12 36 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- Analog 0 ... 10 VDC
- Load resistance:
- > 4000 Ohm
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 18 mm
- Housing length:
- 60 mm
- Connection types:
- Connector M12
- Tightening torque max.:
- 40 Nm
- Operating temperature:
- -10 +70 °C
- Protection class:
- IP 67
