Baumer IR18.P06F-11119456 11119456
Baumer
$90.20

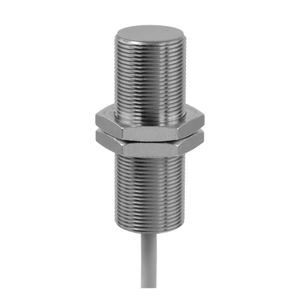

The Baumer IR18.P06F-11119456 is a flush-mounted, cylindrical threaded proximity sensor with a nominal sensing distance of 6 mm and assured sensing distance of up to 81% of Sn. It features a robust design with a brass nickel-plated housing and a PBT sensing face, ensuring durability and resistance to environmental conditions. The sensor operates within a voltage supply range of 5 to 36 VDC and has a maximum output current of 200 mA. It includes multiple protections such as short circuit and reverse polarity protection. The output indicator is a red LED, and it supports a switching frequency of 500 Hz. This model is designed to work equally well with various metals like mild steel, stainless steel, aluminum, and copper, all with a 100% correction factor. It can withstand operating temperatures from -25 to +75 °C and comes with an IP67 protection class, making it suitable for a wide range of industrial applications. The sensor connects via an M12 4-pin connector and is designed to handle a maximum tightening torque of 40 Nm. Its compact dimensions include an 18 mm diameter and a 60 mm housing length, with a total weight of 63 g. The sensor also meets high standards for vibration and shock resistance according to IEC specifications.
- Mounting type:
- Flush
- Special type:
- Factor 1
- Nominal sensing distance Sn:
- 6 mm
- Assured sensing distance Sa:
- ? 81 % of Sn
- Real sensing distance Sr:
- ± 10 % von Sn
- Temperature drift:
- ± 10 % of Sr
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- LED red
- Correction factor typ.:
- Mild steel 100 %, stainless steel 100 %, aluminum 100 %, copper 100 %
- Reference object:
- Fe360 18 x 18 x 1 mm
- Switching frequency:
- 500 Hz
- Voltage supply range +Vs:
- 5 36 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 18 mm
- Housing length:
- 60 mm
- Connection types:
- Connector M12 4 pin
- Tightening torque max.:
- 40 Nm
- Weight:
- 63 g
- Operating temperature:
- -25 +75 °C
- Storage temperature:
- -40 +75 °C
- Protection class:
- IP 67
- Vibration resistance:
- IEC 60068-2-6:2008 10 g at f = 10 - 2000 Hz, duration 150 min per axis
- Shock resistance:
- IEC 60068-2-27:2009 100 g / 6 ms, 10 jolts per axis and direction
- Datasheet:
- View
