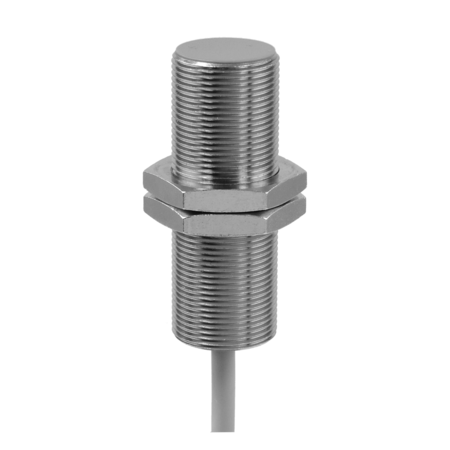

Baumer IR18.P06F-11119473 11119473
Baumer
$90.20
The Baumer IR18.P06F-11119473 is a flush-mounted, cylindrical threaded proximity sensor with a nominal sensing distance of 6 mm and an assured sensing distance of up to 81% of Sn. It features a consistent sensing range with a temperature drift and hysteresis of ±10% and 3-20% of the real sensing distance, respectively. Equipped with a red LED output indicator, this sensor supports a wide voltage supply range from 5 to 36 VDC and has a maximum current consumption of 12 mA. It offers robust output capabilities with a maximum output current of 200 mA and includes safety features such as short circuit and reverse polarity protection. The sensor is designed with a PBT sensing face and a brass nickel-plated housing, measuring 18 mm in diameter and 50 mm in length. It connects via a 2-meter cable and can handle a tightening torque of up to 40 Nm. Weighing 100 g, it operates effectively within a temperature range of -25 to +75 °C and boasts high durability with IP 67 protection, vibration resistance up to 10 g, and shock resistance of 100 g. Ideal for various industrial applications, it ensures reliable performance across different metal types including mild steel, stainless steel, aluminum, and copper.
- Mounting type:
- Flush
- Special type:
- Factor 1
- Nominal sensing distance Sn:
- 6 mm
- Assured sensing distance Sa:
- ? 81 % of Sn
- Real sensing distance Sr:
- ± 10 % von Sn
- Temperature drift:
- ± 10 % of Sr
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- LED red
- Correction factor typ.:
- Mild steel 100 %, stainless steel 100 %, aluminum 100 %, copper 100 %
- Reference object:
- Fe360 18 x 18 x 1 mm
- Switching frequency:
- 500 Hz
- Voltage supply range +Vs:
- 5 36 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- NPN break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 18 mm
- Housing length:
- 50 mm
- Connection types:
- Cable, L=2 m
- Tightening torque max.:
- 40 Nm
- Weight:
- 100 g
- Operating temperature:
- -25 +75 °C
- Storage temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Vibration resistance:
- IEC 60068-2-6:2008 10 g at f = 10 - 2000 Hz, duration 150 min per axis
- Shock resistance:
- IEC 60068-2-27:2009 100 g / 6 ms, 10 jolts per axis and direction
- Datasheet:
- View
