Description

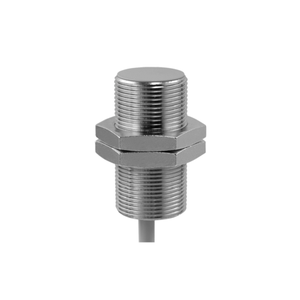

Baumer IR18.P12S-F50.NO1Z.7BCV 11148844 is a flush-mounted, cylindrical threaded proximity sensor with an enhanced sensing distance of 12 mm. It features a temperature drift of ±10%, hysteresis of 3-20% of Sr, and an LED red output indicator. The sensor operates with a correction factor of 100% for mild steel, 70% for stainless steel, and 40% for aluminum. It has a switching frequency of 400 Hz and a voltage supply range of 6-36 VDC. The maximum current consumption is 10 mA with an NPN make function (NO) output circuit and a voltage drop of less than 2 VDC. The output current is 100 mA. It includes short circuit and reverse polarity protection. The sensor is made from brass nickel-plated housing and PBT sensing face, measuring 18 mm in diameter and 50 mm in housing length. It connects via a 2-meter cable and can be tightened with a maximum torque of 40 Nm. Operating temperatures range from -25 to +75 °C, and it is rated IP 67 for protection against dust and immersion.
