Description

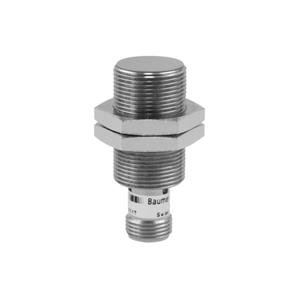

The Baumer IR18.P12S-F60.PC1Z.7BO 11149167 is a flush-mounted, cylindrical threaded proximity sensor with an enhanced sensing distance of 12 mm. It features a temperature drift of ±10%, hysteresis of 3-20% of Sr, and a switching frequency of 400 Hz. The sensor operates on a voltage supply range of 6-36 VDC with a maximum current consumption of 10 mA. It includes a PNP break function (NC) output circuit, with a voltage drop of less than 2 VDC and an output current of 100 mA. The sensor is equipped with short circuit and reverse polarity protection. The sensing face is made of PBT, while the housing is brass nickel-plated, measuring 18 mm in diameter and 60 mm in length. It connects via an M12 connector and can be tightened with a maximum torque of 40 Nm. Operating temperatures range from -25 to +75 °C, and it is rated IP 67 for protection against dust and water ingress.
