Baumer IR18V.D08L-F50.UA1Z.9BCU/A002_E012 11197224
Baumer
$450.90

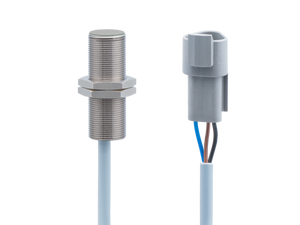

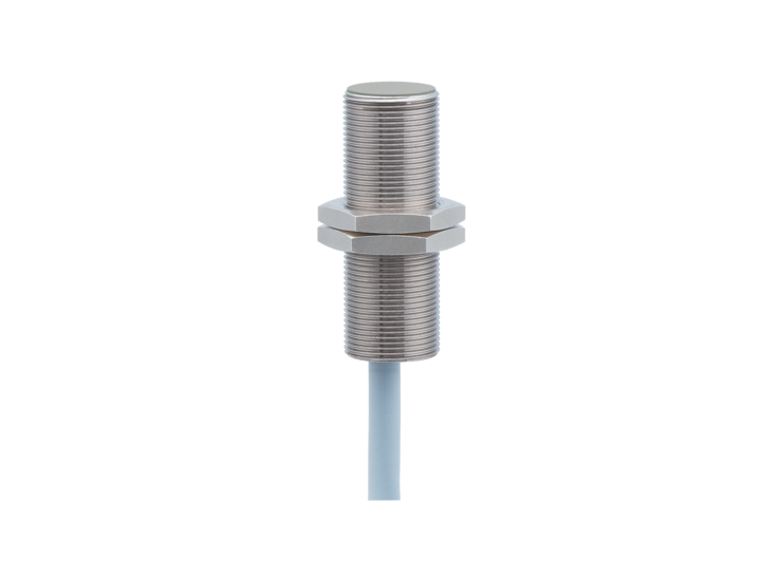

The Baumer IR18V.D08L-F50.UA1Z.9BCU/A002_E012 11197224 is a flush-mounted, linearized sensor designed for vehicle applications, offering a measuring distance of 0 to 8 mm with a sensitivity of 0.5 V/mm. It features high resolution and repeat accuracy, with static resolution less than 0.008 mm and dynamic resolution less than 0.01 mm, and repeat accuracy of 0.016 mm. The linearity error is ±120 µm, and it has a temperature drift of ±8% (Full Scale). It meets multiple standards including EN 60947-5-2, EN 13309:2010, and ISO 13766:2006, among others. The sensor has a fast response time of less than 1 ms, operates on a voltage supply range of 7 to 32 VDC, and includes features like short circuit protection. The cylindrical threaded design is made from brass nickel-plated material with a PBT sensing face, and it offers high durability with IP 68 and IP 69K protection ratings. The sensor is suitable for harsh environments with an operating temperature range of -40 to +85 °C.
- Mounting type:
- Flush
- Special type:
- Linearized Vehicle
- Measuring distance Sd:
- 0 8 mm
- Sensitivity:
- 0,5 V/mm
- Resolution:
- < 0.008 mm (stat.) < 0.01 mm (dynam.)
- Repeat accuracy:
- 0.016 mm
- Linearity error:
- ± 120 µm
- Temperature drift:
- ± 8 % (Full Scale)
- Approvals/certificates:
- EN 60947-5-2 / EN 60947-5-7 EN 13309:2010 1) 3) EN ISO 14982:2009 1) 2) ISO 13766:2006 1)
- Response time (factory characteristic):
- < 1 ms
- Voltage supply range +Vs:
- 7 32 VDC , (12 V DC vehicle power)
- Current consumption max. (no load):
- 15 mA
- Output circuit:
- Analog 0,5 ... 4,5 VDC
- Load resistance:
- > 900 Ohm
- Short circuit protection:
- Yes
- Reverse polarity protection:
- No
- Conducted inteference:
- ISO 7637-2, ISO 16750-2, details see section "Test pulses"
- Off-Highway Electromagnetic immunity:
- ISO 11452-4: 200mA ISO 11452-2: 100V/m Based on UN / ECE R10 Rev 5 ch. 6.8 (no ECE type approval available)
- Off-Highway Emission:
- EN 55011 Based on UN / ECE R10 Rev 5 ch. 6.5, 6.6 (no ECE type approval available)
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 18 mm
- Housing length:
- 50 mm
- Connection types:
- Cable, L=2 m
- Tightening torque max.:
- 40 Nm (A: 28 Nm, B: 28 Nm)
- Operating temperature:
- -40 +85 °C
- Protection class:
- IP 68 (sensing face/sensor) IP 68 (1,5 m, 24 h) IP 69K (sensing face)
- Datasheet:
- View
