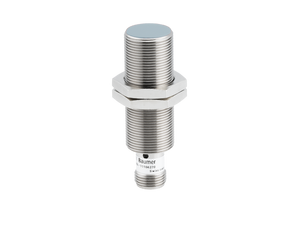

The Baumer IR30.D18L-F60.GP2I.7BF/A014 is a high-precision, cylindrical threaded sensor designed for distance measurement with a range of 0 to 18 mm and a resolution of less than 0.01 mm in High Accuracy Mode. It features repeat accuracy of 0.02 mm and linearity error of ±360 µm. The sensor supports IO-Link communication and offers various teaching methods including single point, two point, and window. It has a fast response time of less than 2 ms and a high switching frequency of 600 Hz. The sensor is equipped with LED indicators for power and output status, and offers protection against short circuits and reverse polarity. It operates within a voltage supply range of 8 to 36 VDC and can handle an output current of up to 100 mA. The housing is made of brass nickel-plated material with a PBT sensing face, ensuring durability and a protection class of IP 67, suitable for harsh environments. The sensor can operate in temperatures ranging from -25 to +75 °C and is easily connected via an M12 connector.
- Mounting type:
- Flush
- Special type:
- Linearized
- Type:
- Distance measuring
- Measuring distance Sd:
- 0 18 mm
- Resolution:
- < 0.01 mm (High Accuracy Mode)
- Repeat accuracy:
- 0.02 mm
- Adjustment:
- IO-Link
- Teach:
- Single point, Two point, Window
- Linearity error:
- ± 360 µm
- Temperature drift:
- ± 6 % (Full Scale)
- Hysteresis:
- < 99 % (adjustable)
- Power on indication:
- LED green
- Output indicator:
- LED yellow
- Response time (factory characteristic):
- < 2 ms
- Switching frequency:
- 600 Hz
- Voltage supply range +Vs:
- 8 36 VDC
- Current consumption max. (no load):
- 20 mA
- Output circuit:
- PNP Push-pull IO-Link dual channel
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Baud rate:
- 230.4 kBaud (COM 3)
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 30 mm
- Housing length:
- 60 mm
- Connection types:
- Connector M12
- Tightening torque max.:
- 100 Nm
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
- Operating Manual:
- View
